Commercial Brewery Equipment for High-Volume Production
Industrial-scale brewing systems from 4,000L to 5,000L — engineered for national distribution, export markets and contract brewing facilities.
- Industrial-Grade Brewhouse – Steam-heated 4–6 vessel systems with ≥85% efficiency, ±0.5°C temperature control and full PLC automation.
- Contract Brewing Ready – Multi-client batch management, 100+ recipe storage and remote monitoring for high-throughput operations.
- Annual Output – 2,000 to 3,000+ BBL per year, scalable through additional fermentation capacity and packaging line integration.
- Turnkey Delivery – 3D facility design, full installation, operator training and 10-year structural warranty.
The Trusted Partner for Large-Scale Brewery Operations
Introduction: When scaling to commercial production, reliability, efficiency, and consistent quality are non-negotiable. ZPET’s commercial brewery equipment is engineered to meet the rigorous demands of high-volume production while maintaining the flexibility to produce diverse beer styles
Proven Track Record in Large-Scale Projects
200+ Commercial Breweries Worldwide: ZPET has delivered turnkey brewery solutions to clients across North America, Europe, Australia, and Asia, including:
- Contract Brewing Facilities: Multi-client production environments requiring rapid changeovers and consistent quality
- National Craft Breweries: Large-scale operations producing 5,000-20,000+ BBL/year
- Export-Focused Breweries: Systems designed for international quality standards and certifications
Case Study Highlight: A 5000L system installed in Australia produces 15,000 BBL/year across 8 beer styles, maintaining 98% quality consistency and 92% OEE (Overall Equipment Effectiveness).
Industrial-Grade Engineering & Materials
SUS304/316L Stainless Steel Construction:
- ≤0.4μm Inner Surface Finish: Pharmaceutical-grade polishing prevents bacterial contamination and simplifies CIP cleaning
- Pressure-Rated Vessels: Supports naturally carbonated beer and high-pressure fermentation (up to 3 bar)
- Thick Insulation: 80-100mm polyurethane foam reduces energy loss by 30-40% compared to standard systems
Steam Heating System:
- Rapid Heat-Up: Achieves mash temperatures 40% faster than electric systems
- Energy Efficiency: 25-30% lower operating costs for continuous production
- Precise Temperature Control: ±0.5°C accuracy for repeatable mash profiles
Full PLC Automation for Operational Excellence
Recipe Management System:
- Store 100+ Recipes: Pre-program mash profiles, hop schedules, and fermentation curves
- One-Touch Brewing: Automated mashing, lautering, boiling, and cooling sequences
- Batch Logging: Automatic recording of time, temperature, gravity, and process parameters for quality control and traceability
Remote Monitoring & Control:
- Real-Time Dashboards: Monitor all brewing parameters from mobile devices or office computers
- Alarm Notifications: Instant alerts for temperature deviations, pump failures, or process anomalies
- Data Analytics: Historical data analysis for process optimization and quality improvement
Scalability & Future Expansion
Modular Design:
- Add Fermentation Capacity: Integrate additional 4000L/5000L fermenters without brewhouse modifications
- Upgrade Automation: Transition from semi-automatic to full PLC control as operations mature
- Integrate Packaging Lines: Seamless connection to filtration, carbonation, and bottling/canning equipment
Typical Expansion Path:
1.Year 1-2: Single 4000L/5000L brewhouse + 4-6 fermenters (2000-3000 BBL/year)
2.Year 3-4: Add 4-8 fermenters + bright beer tanks (4000-6000 BBL/year)
3.Year 5+: Add second brewhouse or upgrade to 7000L+ system (10,000+ BBL/year)
Engineering Features That Define Commercial-Grade Performance

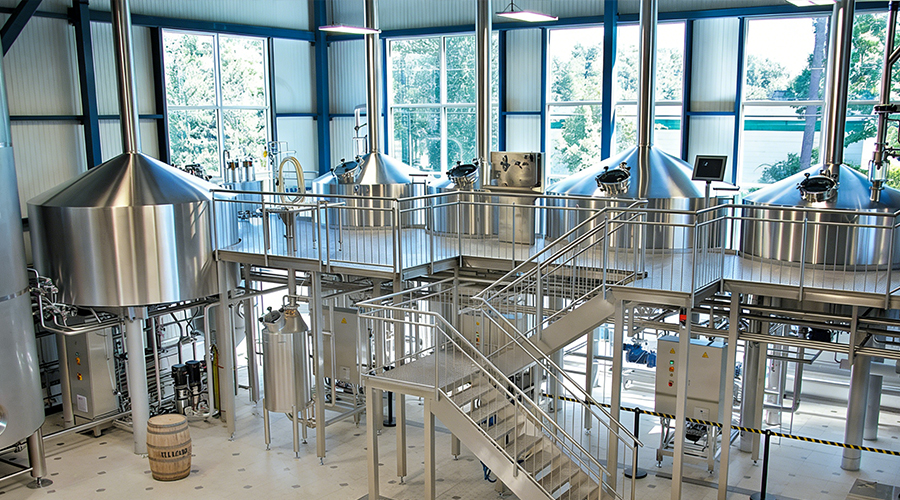

Advanced Brewhouse Design
4-6 Vessel Configuration:
- Mash Tun: Precision temperature control (±0.5°C) with multi-step mashing capability
- Lauter Tun: False bottom design with adjustable rake system for optimal wort clarity and extract efficiency
- Brew Kettle: High-efficiency steam jackets with internal calandria for vigorous boiling and hop utilization
- Whirlpool Kettle: Tangential wort inlet for effective trub separation and clear wort transfer
Brewhouse Efficiency: ≥85% (industry-leading performance reduces raw material costs by 5-8% compared to standard systems)
Fermentation & Conditioning System
Conical Bottom Fermenters:
- Multi-Zone Cooling Jackets: 3-4 independent cooling zones for precise temperature control during fermentation and conditioning
- Pressure-Rated Construction: Supports naturally carbonated beer (up to 3 bar) and spunding operations
- Yeast Harvesting Ports: Butterfly valves for easy yeast collection and reuse (reduces yeast costs by 60-70%)
Glycol Cooling System:
- -5°C to +2°C Glycol Temperature: Supports lager fermentation (8-12°C) and cold conditioning (0-2°C)
- Redundant Chiller Configuration: Dual glycol chillers ensure continuous operation even during maintenance
CIP (Clean-In-Place) System
Automated Cleaning:
- Single-Tank CIP: Automated cleaning cycles for brewhouse vessels (caustic wash, acid rinse, sanitization)
- Fermentation Tank CIP: Spray ball coverage ensures complete interior cleaning without manual scrubbing
- Water Recovery: Recirculation system reduces water consumption by 40-50%
Cleaning Cycle Time: 60-90 minutes per vessel (vs. 3-4 hours for manual cleaning)
Choose Your Commercial Brewery System Capacity
Introduction: ZPET offers two commercial brewery system capacities (4000L, 5000L) designed for different production scales and market strategies. Each system includes a complete brewhouse, fermentation tanks, glycol cooling system, steam heating, and full PLC automation.
4000L Commercial Brewery Equipment
High-Capacity System for Regional & National Distribution
Capacity: 4000 Liters (34.4 BBL / 1,057 gallons)
Best For: Large regional craft breweries, contract brewing facilities, multi-state distribution
Key Advantage: Ideal for breweries producing 2000-2500 barrels per month—supports 2-3 batches per day with consistent quality across multiple beer styles
Brewhouse Efficiency: ≥85%
Configuration: 4-5 vessel brewhouse | Steam heating | Full PLC automation with recipe management

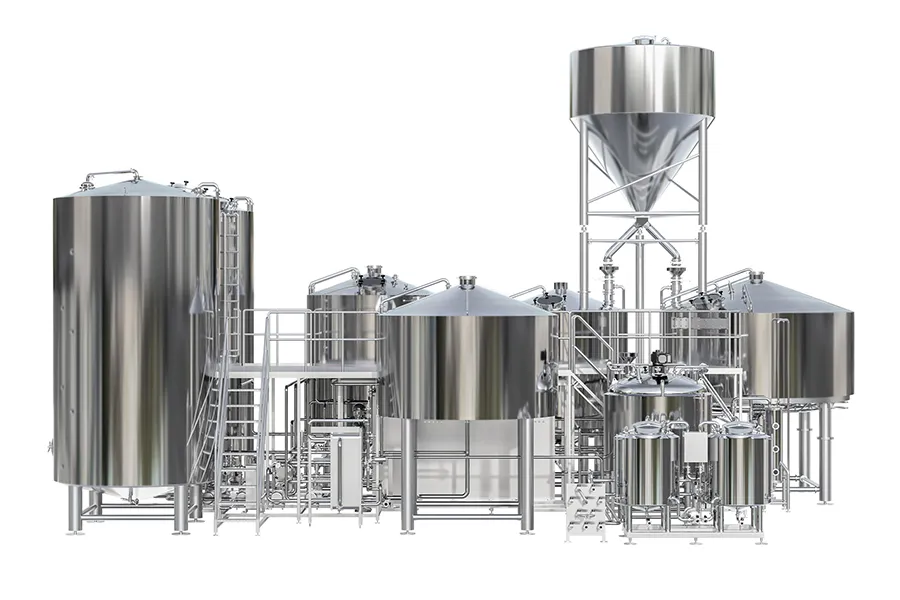

5000L Commercial Brewery Equipment
Ultra-High-Capacity System for National & Export Markets
Capacity: 5000 Liters (43 BBL / 1,321 gallons)
Best For: Large-scale commercial breweries, national distribution, international export operations
Key Advantage: Maximum production capacity—supports 2500-3000+ barrels per month with 2-3 batches per day, ideal for breweries targeting multi-state or international markets
Brewhouse Efficiency: ≥85%
Configuration: 4-6 vessel brewhouse | Steam heating | Full PLC automation with advanced recipe management and remote monitoring
Commercial Brewery Equipment Comparison Matrix
Model | Capacity | Efficiency | Batches/Day | Annual Production | Ideal For | Heating | Automation |
4000L | 34.4 BBL / 1,057 gal | ≥85% | 2-3 | 2000-2500 BBL/year | Regional craft breweries, contract brewing | Steam | Full PLC automation |
5000L | 43 BBL / 1,321 gal | ≥85% | 2-3 | 2500-3000+ BBL/year | National distribution, export markets | Steam | Full PLC + remote monitoring |
Note: Annual production assumes 250 brewing days per year. Actual output depends on beer styles, fermentation time, and operational efficiency.
Brewery Space Requirements for Commercial Systems
Proper space planning is critical for efficient operations, workflow optimization, and future expansion. Below are recommended space allocations for 4000L and 5000L commercial brewery systems.
System | Brewhouse Area | Fermentation Area | Total Brewery Space | Ceiling Height |
4000L | 120-150 m² | 200-300 m² | 500-700 m² | ≥6m |
5000L | 150-180 m² | 250-350 m² | 600-800 m² | ≥6.5m |
Space includes: Brewhouse, fermentation cellar, glycol system, grain storage (10-15 tons), packaging area, and walkways.

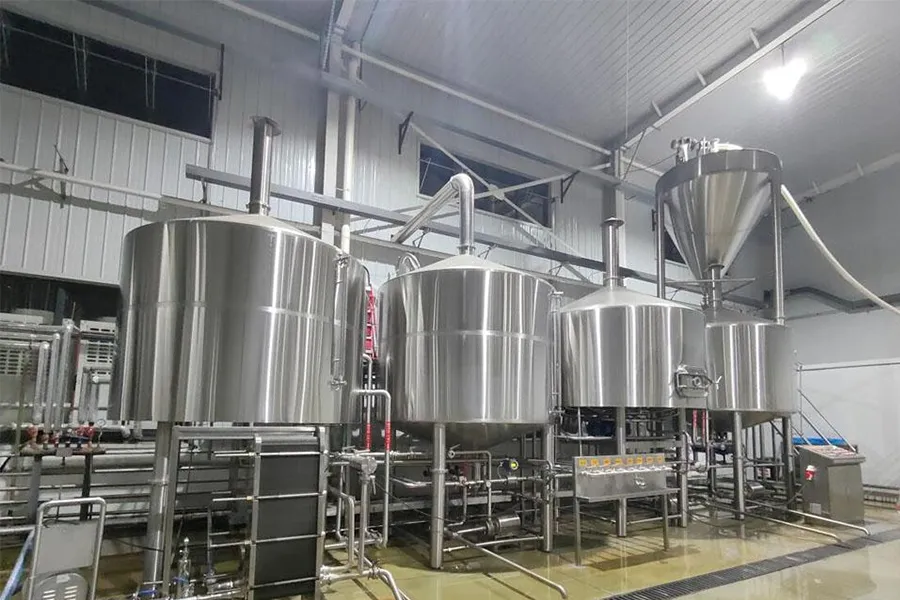

Brewhouse Positioning
- Elevated Platform: 4-6 meter elevation for gravity-fed wort transfer (reduces pump usage and oxidation)
- Steam Boiler Proximity: Minimize steam line distance to reduce heat loss and installation costs

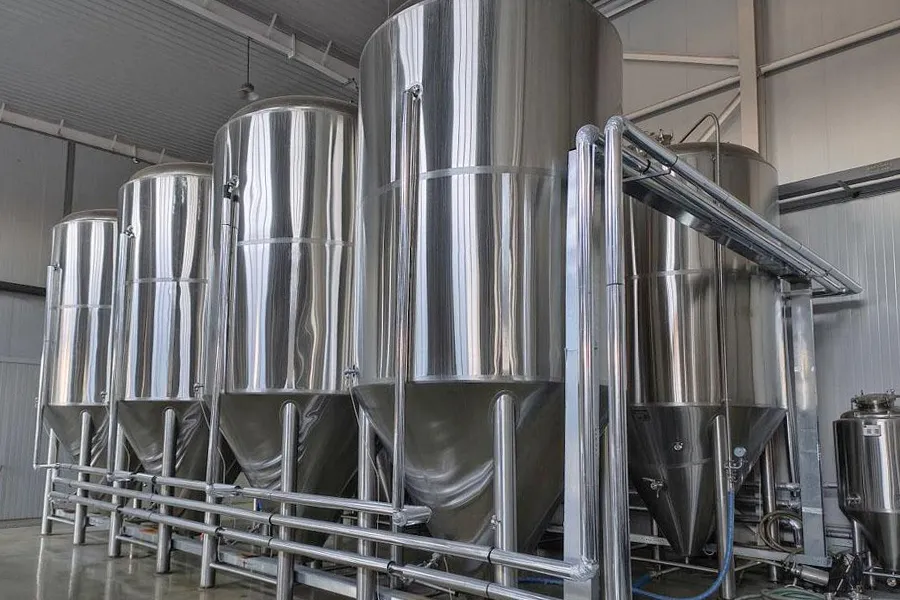

Fermentation Cellar
- Temperature Control: Insulated walls and glycol distribution manifolds for consistent cooling
- Tank Spacing: 1.5-2 meter clearance between tanks for cleaning, maintenance, and yeast harvesting

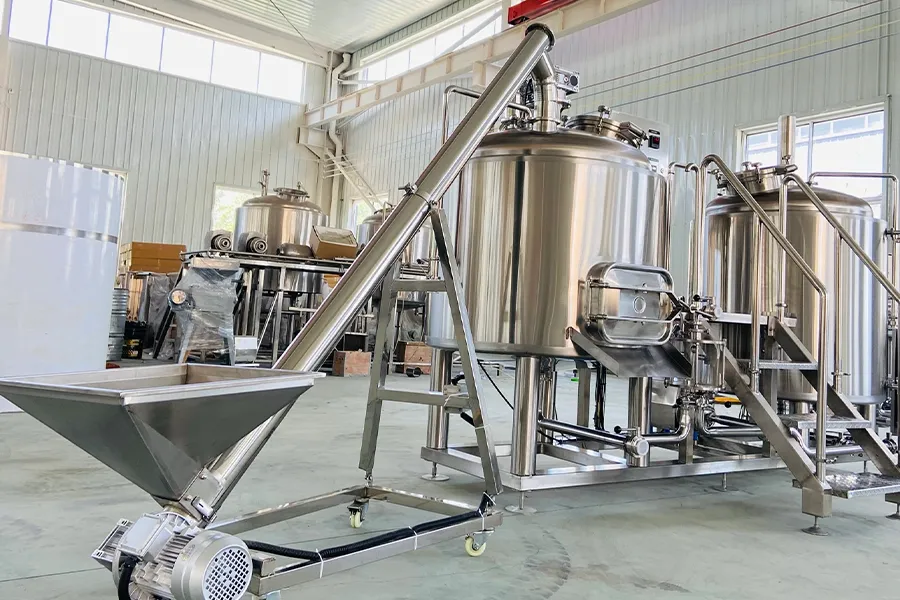

Grain Handling
- Silo or Bulk Storage: 10-15 ton capacity for 2-3 weeks of production
- Milling Room: Adjacent to brewhouse with dust collection system

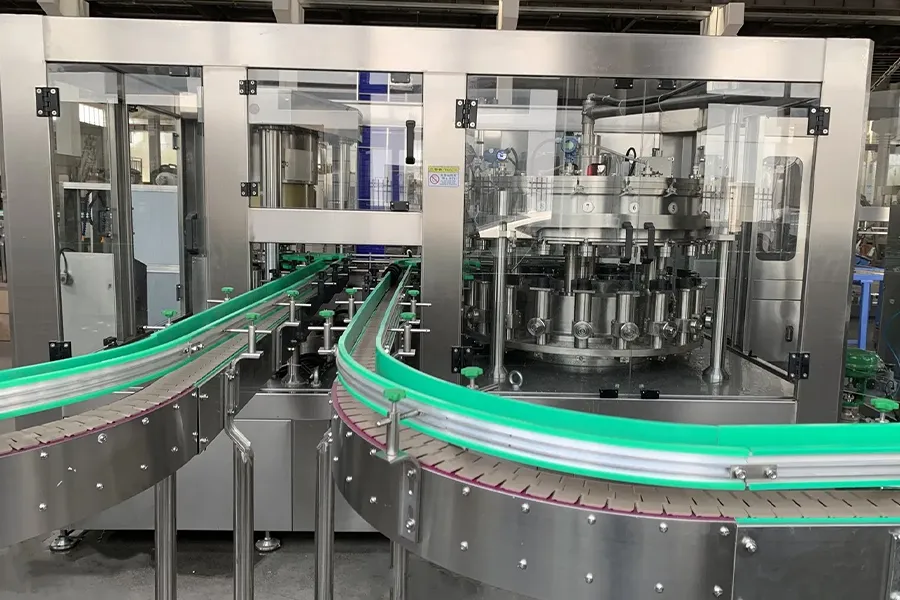

Packaging Area
- Bright Beer Tank Storage: 2-4 tanks (4000L-5000L each) for carbonation and clarification
- Bottling/Canning Line: 50-100 m² for manual or semi-automatic packaging equipment

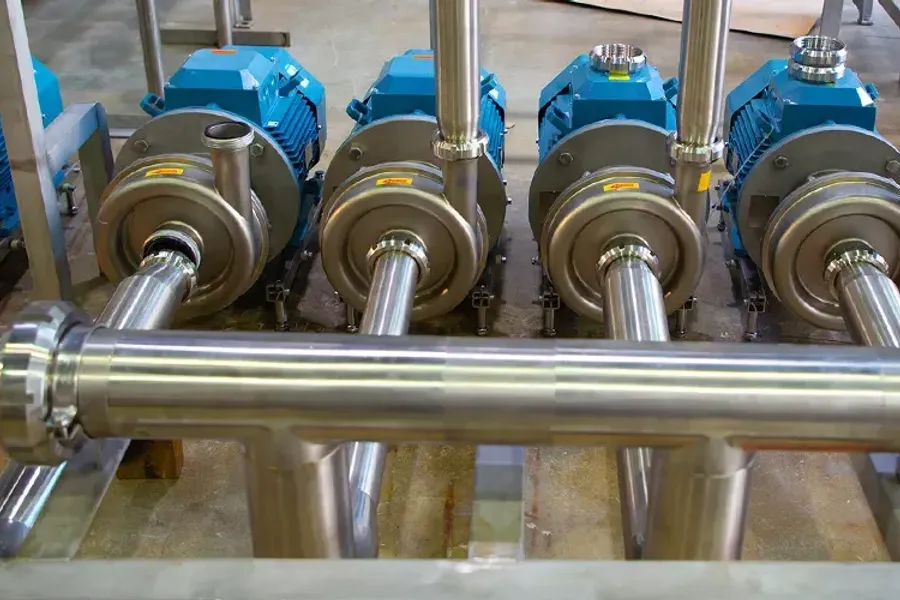

Utility Requirement
- Electrical: 200-300 kW (3-phase power)
- Water: 15-20 m³ per brew day (including CIP and cooling)
- Steam: 500-800 kg/hour boiler capacity
- Compressed Air: 10-15 CFM for pneumatic valves and controls
ZPET Commercial Brewery Equipment in Action Worldwide
Introduction: ZPET has delivered 200+ commercial brewery projects across 40+ countries, supporting breweries from startup to national distribution. Below are representative case studies demonstrating the versatility and reliability of our 4000L-5000L systems
Common Questions About Commercial Brewery Equipment
What is the difference between 4000L and 5000L systems in terms of operational complexity?
Both systems operate at similar complexity levels—the primary difference is production volume, not operational difficulty. Both require full PLC automation, steam heating, and professional brewing staff. The 5000L system requires slightly larger utility capacity (boiler, glycol chiller, electrical service) but operational procedures are identical.
Can I start with a 4000L system and upgrade to 5000L later?
While technically possible, it’s not cost-effective. Upgrading brewhouse capacity requires replacing the entire brewhouse system. Instead, we recommend adding fermentation capacity or a second 4000L brewhouse if you outgrow the initial system. Choose the right capacity initially based on 5-year projections
How many staff members are required to operate a 4000L-5000L brewery?
Typical staffing for commercial operations:
- Brewing Team: 3-4 brewers (head brewer + 2-3 assistants/cellar operators)
- Packaging Team: 2-4 staff (if running packaging line)
- Quality Control: 1 QC manager/lab technician
- Maintenance: 1 maintenance technician (can be part-time or contracted)
Total: 6-10 staff for full production operations.
What is the expected lifespan of commercial brewery equipment?
With proper maintenance:
- Brewhouse & Fermentation Tanks: 20-30+ years (stainless steel construction)
- Pumps & Valves: 10-15 years (with regular seal/bearing replacement)
- Glycol Chillers: 15-20 years (with annual maintenance)
- Control Systems: 10-15 years (with software updates)
ZPET provides 10-year warranty on structural components and ongoing spare parts support.
Can the system produce non-beer beverages (kombucha, cider, seltzer)?
Yes, with minor modifications:
- Kombucha: Requires dedicated fermentation tanks (avoid cross-contamination with beer yeast)
- Cider: Fully compatible with existing equipment
- Hard Seltzer: Requires additional filtration and carbonation equipment
ZPET can customize systems for multi-beverage production.
What happens if I need to relocate the brewery in the future?
Commercial brewery equipment is designed for disassembly and relocation:
- Brewhouse: Can be disassembled and moved (requires crane and rigging)
- Fermentation Tanks: Modular design allows relocation
- Cost: Typically 15-25% of original equipment cost for professional relocation
ZPET can provide relocation support and re-commissioning services.
How does ZPET handle warranty claims and technical support?
Comprehensive support program:
- 10-Year Warranty: Structural components (vessels, jackets, frames)
- 2-Year Warranty: Mechanical components (pumps, valves, controls)
- 24/7 Technical Support: Phone, email, and video support
- Spare Parts: Expedited shipping (3-5 days to most locations)
- On-Site Service: Available for major repairs or upgrades
Can I visit ZPET's factory before placing an order?
Absolutely! We encourage factory visits:
- Factory Tours: See manufacturing process and quality control procedures
- Equipment Testing: View completed systems undergoing factory testing
- Client References: Meet with existing clients and visit operating breweries
- Travel Support: We can assist with visa invitations and local accommodation
Start Your Commercial Brewery Project with ZPET
Ready to scale your brewery to commercial production? ZPET’s 4000L-5000L commercial brewery equipment provides the capacity, reliability, and efficiency you need to compete in national and international markets.
Free Consultation
- Capacity Planning: Analyze your production goals and recommend optimal system size
- Layout Design: Review your facility and create preliminary brewery layout
- Budget Estimation: Provide detailed cost breakdown and financing options
Detailed Proposal
- Technical Specifications: Complete equipment specifications and P&ID drawings
- 3D Layout Design: Visualize your brewery with detailed 3D models
- Project Timeline: Manufacturing schedule, shipping plan, and installation timeline
Project Execution
- Manufacturing: 12-16 weeks with weekly progress updates
- Installation: On-site technical team for setup and commissioning
- Training: Comprehensive operator training and ongoing support
Ready to Design Your Custom Brewhouse?
Our senior engineers are ready to discuss your project requirements and provide a detailed quote and preliminary layout.
