Microbrewery Equipment for Regional Craft Breweries
High-efficiency brewing systems from 1,200L to 3,000L — built for regional distribution, contract brewing and multi-brand production.
- Production-Scale Brewhouse – 4-vessel systems with steam heating, ≥85% efficiency and full PLC automation for consistent batch output.
- Multi-Brand Flexibility – 100+ recipe storage, rapid changeover and independent fermentation control for contract brewing operations.
- Modular Expansion – Add fermentation tanks, a second brewhouse or packaging lines as production volume grows.
- Turnkey Solutions – Custom layout, full installation, commissioning and 10-year warranty included.
Why Craft Breweries Trust ZPET for Regional Expansion
High-Volume Production with Craft Quality
Scale from 2-4 batches per day to 300-800 barrels per month without sacrificing beer quality. Our systems maintain ≥83-85% brewhouse efficiency across all batch sizes, ensuring consistent wort quality and optimal hop utilization
Steam Heating for Professional Performance
Steam heating (recommended for 1200L+ systems) provides rapid temperature ramping, precise mash control, and energy efficiency. Unlike electric systems, steam heating supports continuous multi-batch brewing and reduces operational costs by 30-40%
Scalable Design for Future Growth
Start with a 1200L brewhouse and expand by adding fermentation tanks, bright beer tanks, or upgrading to full PLC automation. Our modular design protects your initial investment and supports seamless scaling to 3000L+ systems.
PLC Automation for Repeatable Resultsbally Certified
Optional PLC control systems allow recipe management, batch logging, and automated process control—ensuring every batch of your flagship IPA tastes identical whether brewed in January or July
Multi-Zone Temperature Control
Advanced dimple jacket cooling with multi-zone control enables precise fermentation management for lagers (8-12°C), ales (18-22°C), and specialty beers—supporting product diversification and seasonal releases
Turnkey Installation & Training
From brewery layout design to equipment installation and brewer training, ZPET provides end-to-end support. We've installed 200+ microbrewery systems globally, with 24-hour technical support and spare parts availability.
Engineering Standards That Define Professional Microbrewery Equipment

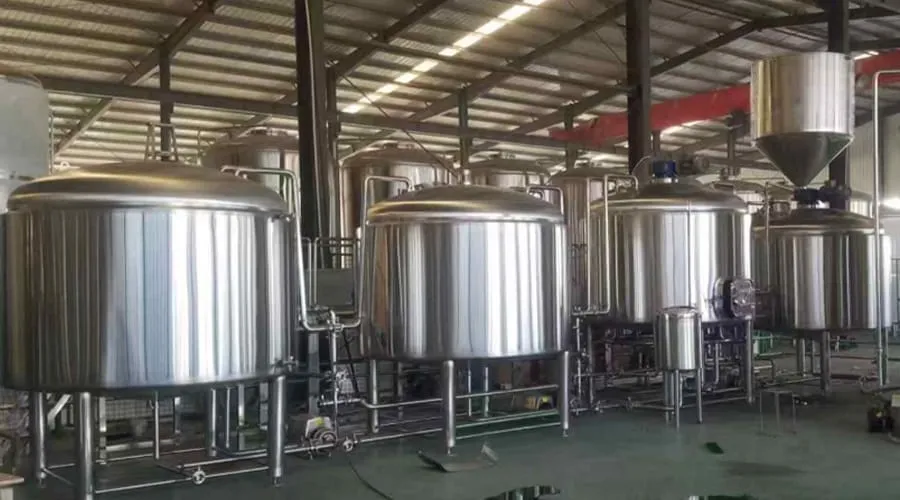

Material & Construction
- Stainless Steel: SUS304 (standard) or SUS316L (for high-chloride water)
- Inner Surface Finish: ≤0.4μm mirror polish (prevents bacterial growth and ensures easy cleaning)
- Welding Standard: TIG welding with 100% X-ray inspection on pressure vessels
- Insulation: 80mm polyurethane foam (reduces heat loss by 85%)

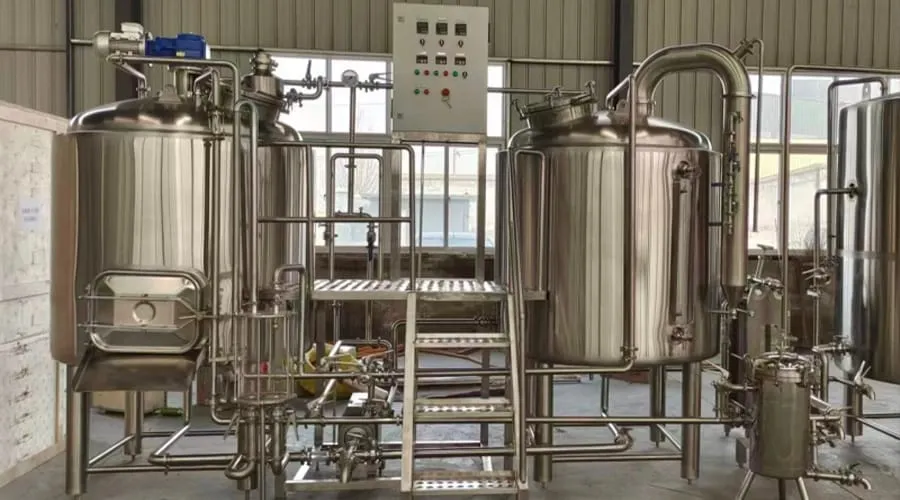

Brewhouse Performance
- Mash Efficiency: ≥83-85% (vs. 75-78% for entry-level systems)
- Boil-Off Rate: 8-12% per hour (optimal for DMS removal and hop isomerization)
- Wort Clarity: <50 EBC turbidity (crystal-clear wort for bright beer)
- Heating Speed: 1°C per minute (steam) vs. 0.3°C per minute (electric)

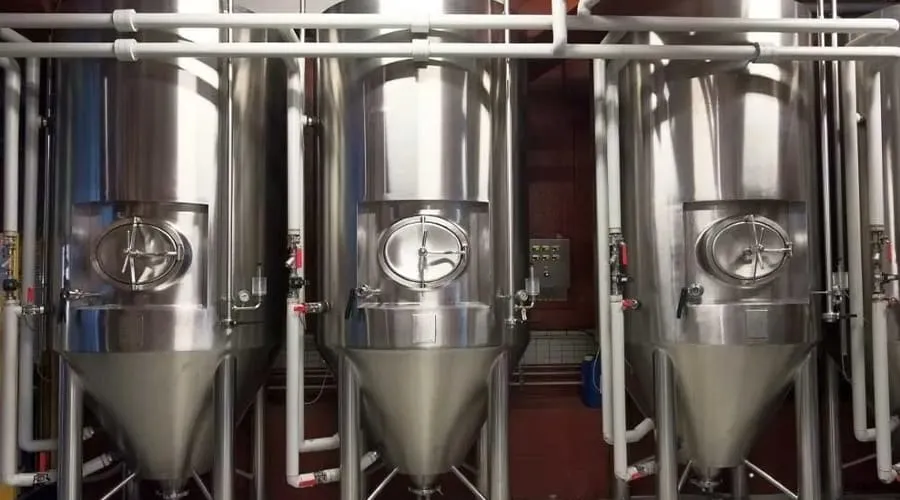

Fermentation Control
- Temperature Precision: ±0.5°C (critical for lager and sour beer production)
- Cooling Capacity: Glycol system sized for 24-hour crash cooling from 20°C to 2°C
- Pressure Rating: Up to 3 Bar (supports high-gravity brewing and natural carbonation)
- Yeast Harvesting: 60° conical bottom with tri-clamp butterfly valve

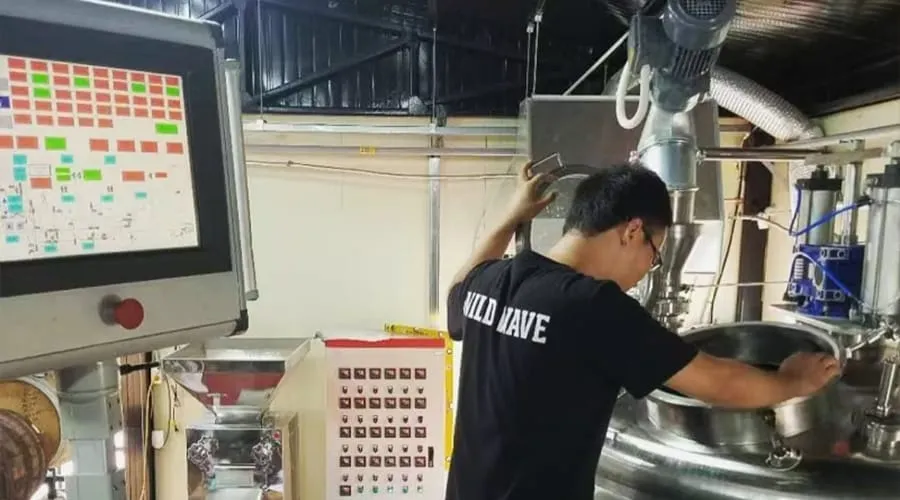

Automation & Control
- Semi-Automatic: Temperature monitoring, pump control, and alarm systems
- PLC Automatic: Full recipe management, automated mashing profiles, CIP integration, and remote monitoring via mobile app
Visual: Technical diagram showing cross-section of brewhouse vessel with labeled components (dimple jacket, manway, sight glass, RTD probe, spray ball, etc.)
Choose Your Microbrewery System Capacity
Introduction: ZPET offers four microbrewery system capacities (1200L, 1500L, 2000L, 3000L) designed for different production scales and business models. Each system includes a complete brewhouse, fermentation tanks, cooling system, and optional automation.

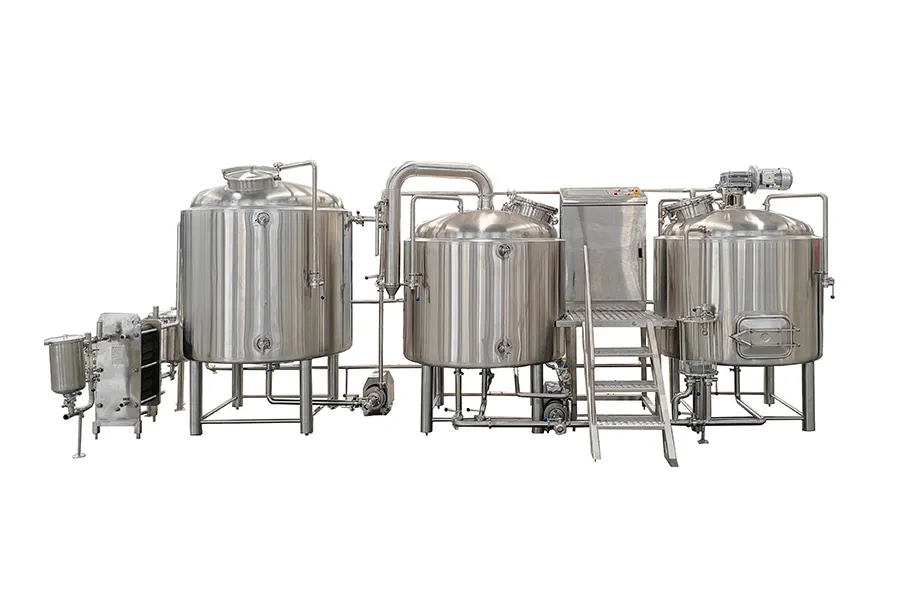

1200L Microbrewery Equipment
Professional-Grade System for Regional Craft Breweries
Capacity: 1200 Liters (10.3 BBL / 317 gallons)
Best For: Regional craft breweries, brewpub chains, contract brewing operations
Key Advantage: Bridges the gap between mid-scale (800-1000L) and commercial systems—ideal for breweries expanding from taproom-only to local distribution
Brewhouse Efficiency: ≥83%
Configuration: 3-4 vessel brewhouse | Steam or Electric heating | Semi-auto or PLC control

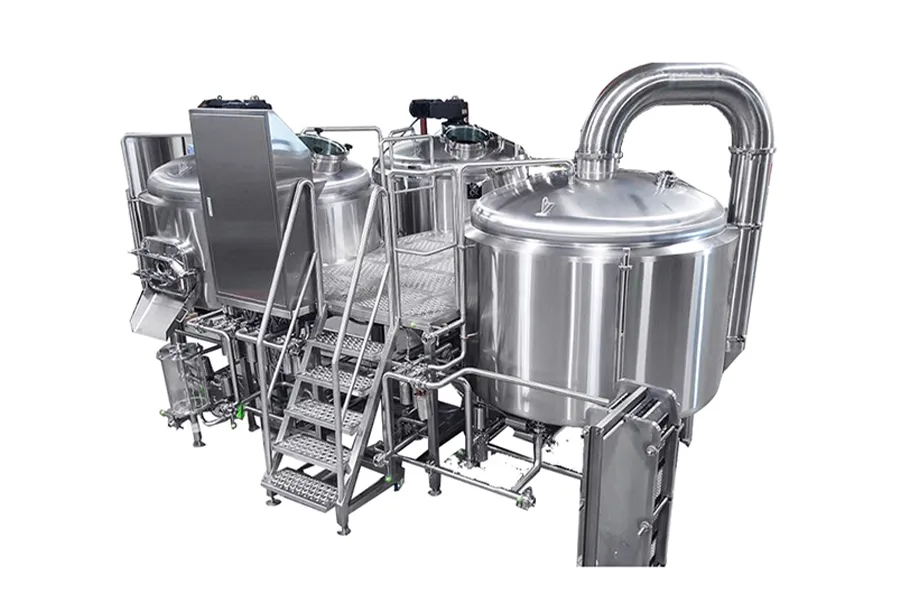

1500L Microbrewery Equipment
High-Capacity System for Growing Commercial Breweries
Capacity: 1500 Liters (12.9 BBL / 396 gallons)
Best For: Multi-location brewpubs, regional distribution brands, seasonal beer production
Key Advantage: The “sweet spot” for craft breweries scaling to 500-1000 barrels per month—balances output, investment cost, and operational complexity
Brewhouse Efficiency: ≥84%
Configuration: 3-4 vessel brewhouse | Steam heating (recommended) | PLC control (recommended)

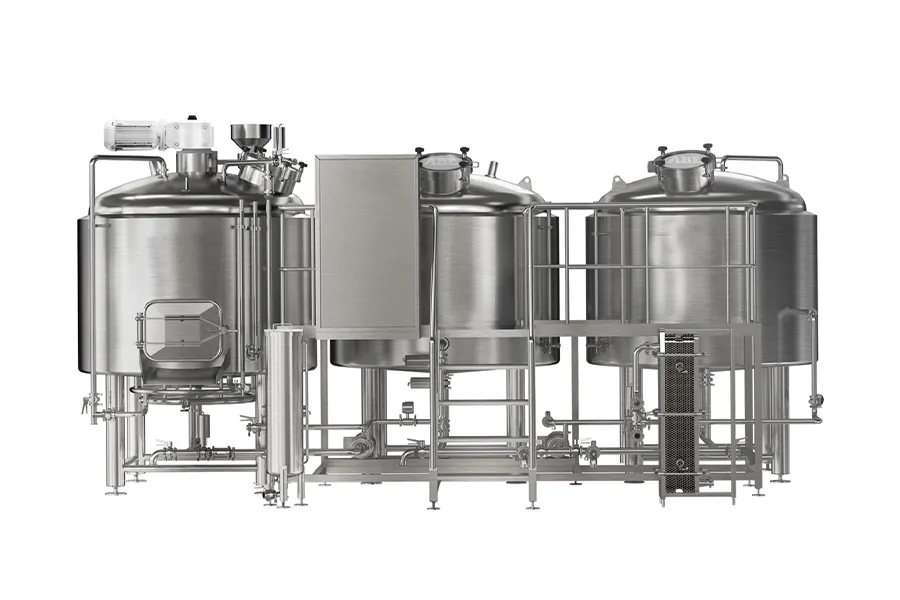

2000L Microbrewery Equipment
Large-Scale System for Regional/National Distribution
Capacity: 2000 Liters (17.2 BBL / 528 gallons)
Best For: Large craft breweries, national distribution brands, high-volume contract brewing
Key Advantage: Maximum microbrewery capacity before transitioning to industrial systems—supports 1000+ barrels per month with 2-3 batches per day
Brewhouse Efficiency: ≥85%
Configuration: 4-vessel brewhouse | Steam heating | PLC automation with recipe management

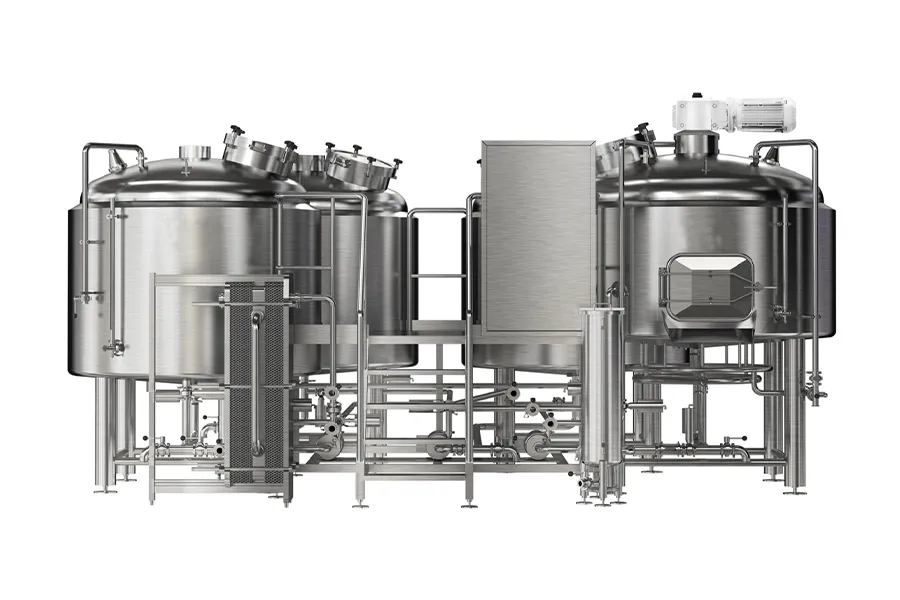

3000L Microbrewery Equipment
Large-Scale Commercial System for High-Volume Production
Capacity: 3000 Liters (25.8 BBL / 792 gallons)
Best For: Large commercial breweries, multi-state distribution, high-volume contract brewing
Key Advantage: Maximum microbrewery capacity—supports 1500-2000 barrels per month with 2-3 batches per day, bridging the gap to full industrial-scale systems
Brewhouse Efficiency: ≥86%
Configuration: 4-vessel brewhouse | Steam heating | Full PLC automation with advanced recipe management
Microbrewery Equipment Comparison Matrix
Model | Capacity | Efficiency | Batches/Day | Annual Production | Ideal For | Heating | Automation |
1200L | 10.3 BBL / 317 gal | ≥83% | 2-3 | 600-900 BBL/year | Regional craft breweries, brewpub chains | Steam/Electric | Semi-auto or PLC |
1500L | 12.9 BBL / 396 gal | ≥84% | 2-3 | 750-1150 BBL/year | Multi-location brewpubs, regional distribution | Steam (rec.) | PLC (rec.) |
2000L | 17.2 BBL / 528 gal | ≥85% | 2-3 | 1000-1500 BBL/year | Large craft breweries, national distribution | Steam | PLC with recipe mgmt |
3000L | 25.8 BBL / 792 gal | ≥86% | 2-3 | 1500-2000 BBL/year | Large commercial breweries, multi-state distribution | Steam | Full PLC automation |
Note: Annual production assumes 250 brewing days per year. Actual output depends on beer styles, fermentation time, and operational efficiency.
Space Requirements and Layout Design for Microbrewery Systems
Proper brewery layout is critical for operational efficiency, workflow optimization, and future expansion. ZPET provides free 3D brewery layout design with every microbrewery system purchase
System | Brewhouse Area | Fermentation Area | Total Brewery Space | Ceiling Height |
1200L | 60-80 m² | 80-120 m² | 200-300 m² | ≥4.5m |
1500L | 70-90 m² | 100-150 m² | 250-350 m² | ≥5m |
2000L | 80-100 m² | 120-180 m² | 300-400 m² | ≥5.5m |
3000L | 100-120 m² | 150-220 m² | 400-500 m² | ≥6m |
Space includes: Brewhouse, fermentation cellar, glycol system, grain storage, packaging area, and walkways.
Microbreweries Worldwide Trust ZPET Equipment
Introduction: ZPET has installed 200+ microbrewery systems in 45+ countries. Here are three representative success stories.
Common Questions About Microbrewery Equipment
What's the difference between microbrewery equipment and nanobrewery equipment?
Capacity and production scale. Nanobrewery equipment (100L-1000L) is designed for small-scale production (100-500 BBL/year), ideal for brewpubs and taprooms. Microbrewery equipment (1200L-2000L) targets regional distribution (600-1500 BBL/year) with higher automation and efficiency. Microbrewery systems typically include steam heating, PLC control, and larger fermentation cellars.
Can I start with a 1200L system and upgrade to 2000L later?
Yes, but it’s more cost-effective to size correctly from the start. Upgrading requires replacing the entire brewhouse (mash tun, lauter tun, kettle)—you can’t simply “add capacity” to existing vessels. However, you CAN start with a 1200L brewhouse and add more fermentation tanks as production grows. ZPET recommends sizing your brewhouse for your 3-year production target.
How long does it take to install a microbrewery system?
14-22 weeks total from order to first brew:
- Manufacturing: 8-12 weeks
- Shipping: 3-5 weeks (ocean freight)
- Installation: 2-3 weeks (on-site assembly and piping)
- Commissioning & Training: 1-2 weeks (testing, calibration, brewer training)
Timeline assumes utilities (electrical, water, steam) are ready before equipment arrival. Delays in utility preparation are the #1 cause of extended timelines.
Do you provide financing or leasing options?
ZPET partners with brewery equipment financing companies that offer:
- Equipment loans (5-7 year terms, 6-9% APR)
- Lease-to-own programs (monthly payments, $4K-$8K/month for 1500L system)
- SBA loans (for US customers, up to $5M, 10-25 year terms)
We provide detailed equipment quotes and specifications required for financing applications. Contact us for financing partner referrals.
What ongoing maintenance is required for microbrewery equipment?
Daily, weekly, and annual maintenance:
- Daily: CIP cleaning of brewhouse and tanks, inspect gaskets and seals
- Weekly: Check glycol levels, inspect pumps and valves, calibrate temperature probes
- Monthly: Clean heat exchangers, inspect electrical connections
- Annual: Pressure test fermentation tanks, replace worn gaskets, professional glycol system service
ZPET provides detailed maintenance manuals and offers annual service contracts ($3K-$6K/year) including remote diagnostics, spare parts, and on-site visits.
Ready to Scale Your Craft Brewery?
Whether you’re expanding from a nanobrewery or launching a new regional craft brewery, ZPET’s microbrewery equipment (1200L-2000L) provides the performance, reliability, and scalability you need. With 15+ years of manufacturing experience and 200+ installations worldwide, we’re your trusted partner for professional brewing systems.
