Cider Fermentation Tanks
Stainless Steel Fermentation Tanks for Stable Cider Quality and Scalable Commercial Production
ZPET Cider Fermentation Tanks are designed for cider producers that require stable fermentation performance, reliable hygiene control, and flexible tank configurations for different cider styles. They are widely used in craft cideries, commercial cider factories, fruit wine production, perry processing, and low-alcohol flavored beverage lines. Built with food-grade stainless steel, precision cooling systems, and customizable configurations, these tanks help producers maintain fresh fruit aroma, balanced acidity, and consistent fermentation results from 500L to 50,000L production scale.
Key Features of Cider Fermentation Tanks
Food-Grade Stainless Steel Construction
Standard SUS304 stainless steel for hygienic cider production
Optional SUS316 stainless steel for stronger resistance to acidic fruit-based beverages
Neutral tank material helps preserve natural apple and fruit flavors
Designed for long-term use in both craft and commercial cider production environments
Precise Temperature Control
Equipped with dimple jacket cooling for accurate fermentation temperature management
Helps prevent overheating and aroma loss during active fermentation
Suitable for cold fermentation to preserve freshness and improve aroma expression
Supports more stable yeast performance and cleaner cider flavor development
Flexible Tank Geometry
Available in cylindrical tanks with flat or conical bottoms
Vertical structure supports efficient use of production floor space
Optional floating lid design for flexible batch volume handling
Suitable for still cider, sparkling cider, sweet cider, dry cider, and mixed fruit cider applications
Hygienic and Sanitary Design
Inner surface finish of ≤0.4 μm for easier cleaning
Fully sanitary welding with no dead zones
Fully CIP-compatible for faster and more reliable cleaning
Helps reduce contamination risk and support stable, food-grade fermentation conditions
Specifications
Standard Technical Specifications
| Item | Specification |
|---|---|
| Capacity Range | 500L – 50,000L (Customizable) |
| Material | SUS304 / SUS316 Stainless Steel |
| Tank Type | Closed Tank / Floating Lid |
| Cooling Method | Dimple Jacket |
| Design Pressure | Atmospheric or Low Pressure |
| Inner Surface Finish | ≤0.4 μm |
| Insulation | Optional, 50–100 mm |
Optional Configurations and Customization
Floating lid with air-tight seal for variable batch sizes
Sampling valve and sight glass for easier process observation and quality checking
Carbonation stone for sparkling cider production
Temperature sensors and digital controllers for stronger fermentation monitoring
Mixing system for flavored or infused cider products
PLC automation for larger commercial production lines
Key Advantages of Stainless Steel Cider Fermentation Tanks
Flavor and Aroma Preservation
Precise temperature control helps preserve fresh apple aroma, fruit character, and balanced acidity throughout fermentation.
Fermentation Stability
Uniform cooling and well-designed tank geometry help reduce fermentation stress, improve yeast behavior, and minimize off-flavors.
High Hygiene Standards
Smooth stainless steel surfaces and CIP compatibility help reduce contamination risk and improve sanitation compared with traditional fermentation vessels.
Production Flexibility
Suitable for different cider styles, sweetness levels, carbonation methods, and fruit blends, making the tanks useful for both standard and specialty cider production.
Scalable Capacity Range
Available from 500L to 50,000L, these tanks support everything from boutique cider projects to large-scale commercial fermentation operations.
Cider Fermentation Process Overview
This controlled process helps producers maintain stable quality and repeatable flavor profiles from batch to batch.
1. Juice Filling
Fresh apple juice or blended fruit juice is transferred into the fermentation tank.
2. Yeast Inoculation
Selected cider yeast is added to begin the fermentation process.
3. Primary Fermentation
Temperature-controlled fermentation starts under stable cooling conditions.
4. Clarification and Settling
Suspended solids gradually settle to improve product clarity.
5. Secondary Fermentation or Conditioning
The cider develops more refined flavor, texture, and aroma during the conditioning stage.
6. Transfer to Storage or BBT
The finished cider is transferred for storage, carbonation, blending, or final packaging preparation.
Optional Automation and Smart Control
The Cider Fermentation Tank system can be configured with different levels of control depending on production scale and standardization needs.
Manual / Basic Monitoring
Suitable for smaller cideries and more hands-on fermentation management.
Digital Monitoring
Supports:
fermentation temperature tracking
process observation
improved batch control
PLC Automation
Supports:
larger commercial cider production
more consistent process control
improved monitoring efficiency
reduced labor dependency
Production Value for Cider Manufacturers
For B2B cider producers, the tank is not only a storage vessel. It is a key production unit that directly affects:
fermentation consistency
fruit aroma retention
acidity balance
sanitation reliability
batch repeatability
flexibility across multiple cider styles
This makes cider fermentation tanks especially important for producers targeting premium cider quality and scalable commercial output.
Manufacturing and Quality Control
Each ZPET cider fermentation tank undergoes:
Precision welding and polishing
Pressure and leak testing
Surface treatment and passivation for stronger corrosion resistance
Final quality inspection before shipment
This ensures long-term reliability, stable fermentation performance, and compliance with professional beverage production standards.
FAQs - Common Questions
1. What types of cider can these fermentation tanks be used for?
They can be used for apple cider, pear cider (perry), berry cider, mixed fruit cider, low-alcohol cider, and flavored cider beverages.
2. Why is stainless steel recommended for cider fermentation?
Stainless steel is hygienic, corrosion resistant, easy to clean, and does not affect the natural fruit flavor of the cider.
3. Can these tanks be used for sparkling cider?
Yes. With optional carbonation stone and pressure-related accessories, they can be configured for sparkling cider production.
4. What capacity range is available?
ZPET cider fermentation tanks are available from 500L to 50,000L, with full customization available.
5. Does ZPET provide turnkey support?
Yes. ZPET provides tank design, layout planning, installation support, technical guidance, and after-sales service for cider production projects.

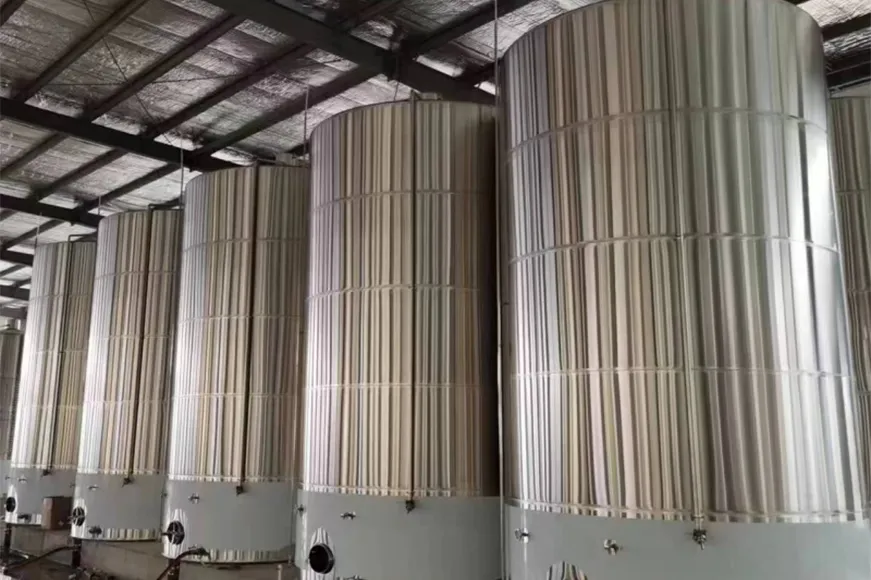

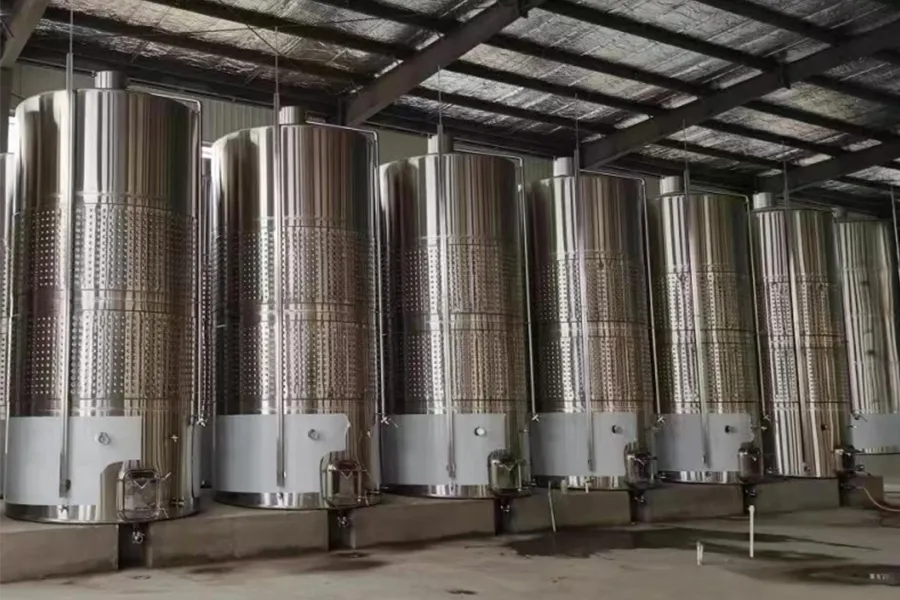

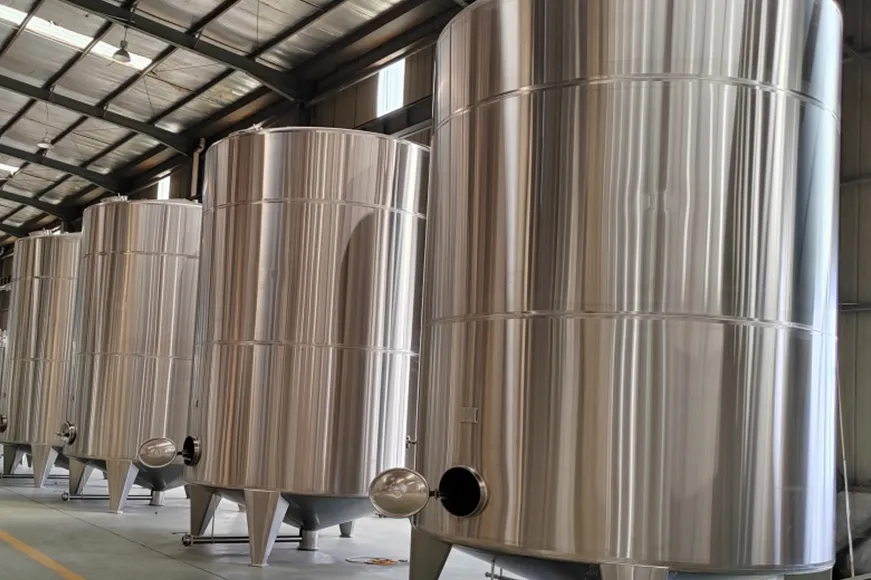

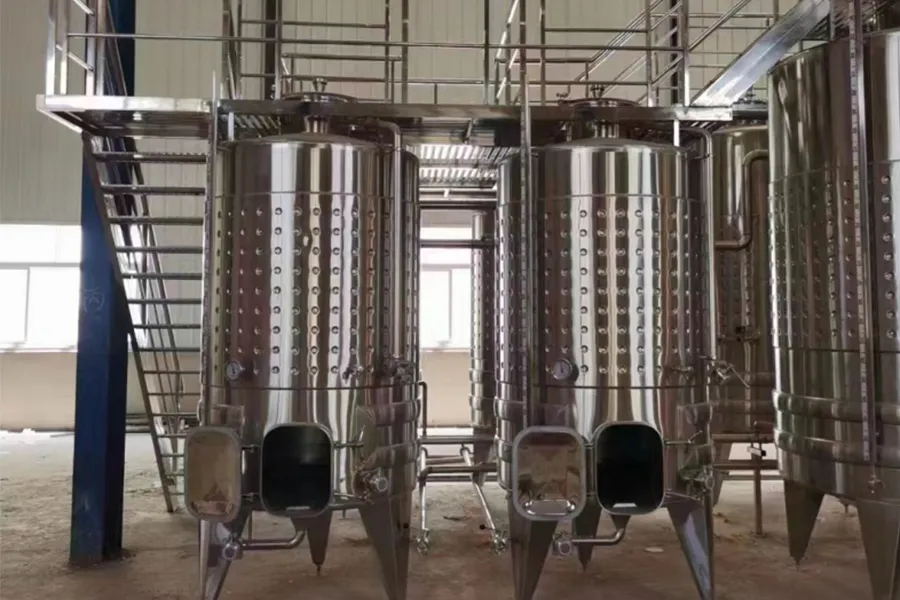

Cider Fermentation Tank Details
Why Choose ZPET Cider Fermentation Tanks?
1. 15+ Years of Fermentation Equipment Manufacturing Experience
ZPET has extensive experience in designing and manufacturing stainless steel fermentation tanks for cider, wine, brewing, and specialty beverage projects.
2. Reliable Stainless Steel Fabrication and Stable Fermentation Performance
We use high-quality stainless steel, precision fabrication, and strict inspection standards to ensure hygienic production and long service life.
3. Complete Turnkey Support and After-sales Service
We provide custom tank design, cidery layout planning, installation guidance, technical support, and long-term after-sales service worldwide.
Trusted by 200+ Breweries & Beverage Brands Worldwide
From craft pioneers to global beverage leaders, we are proud to be the engineering force behind their success.
Your Partner from Business Plan to First Brew
Founded in 2004, ZPET (Jinan Innovative & Craft Beer Equipment Co., Ltd.) has evolved into a global leader in customized brewing equipment. We don’t just manufacture tanks; we engineer success. Our team of expert brewers and engineers works closely with you to provide 3D brewery layouts, customized technical drawings, and optimized flow charts that fit your building’s unique footprint. With over 200 successful installations worldwide, we understand the nuances of international brewing standards and local regulations.
3D Layout
Footprint, workflow, utilities, safety.
Technical Drawings
Nozzles, manways, piping, controls.
Flow Charts
Process clarity from mash to packaging.
5,000㎡ Digital Manufacturing Center: Precision Engineering at Scale
Our Expert Engineering Team: The Brains Behind the Brew
With a dedicated team of over 20 senior mechanical engineers and professional brewmasters, ZPET provides more than just tanks. We offer technical consulting, 3D brewery layouts, and customized engineering solutions tailored to your specific brewing goals.
