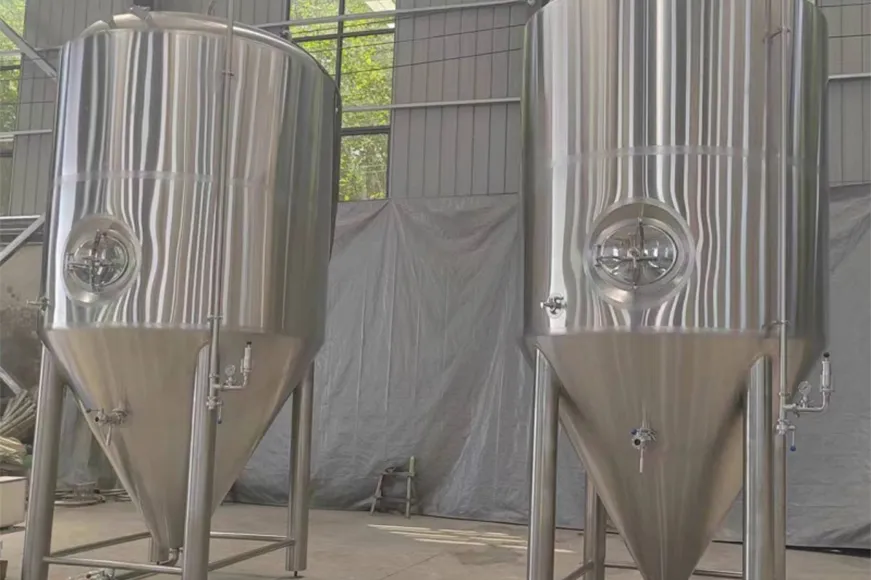

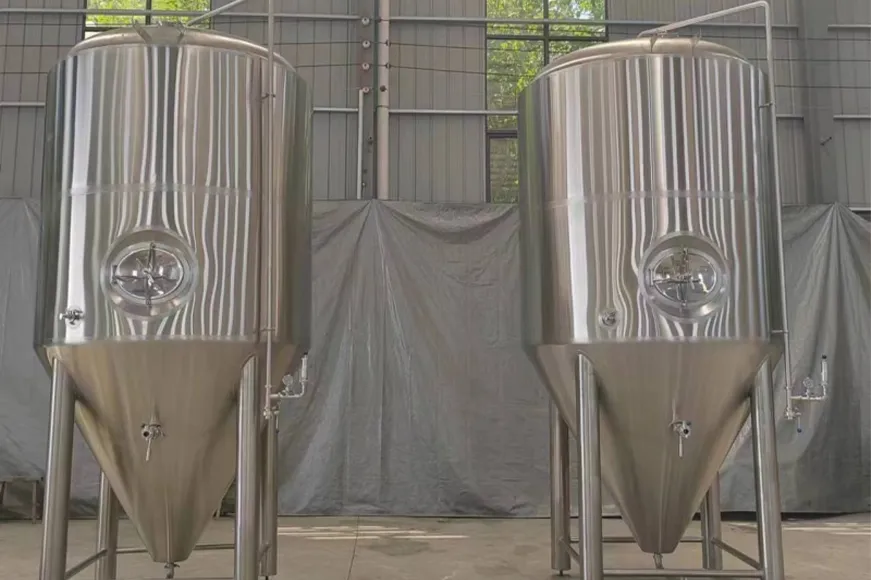

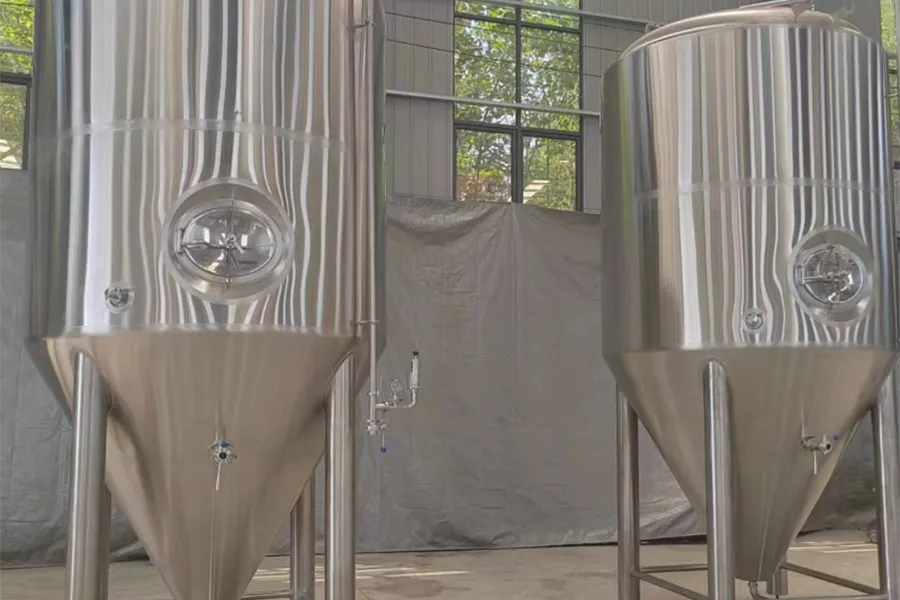

Commercial Beer Fermentation Tank
Large-Capacity Stainless Steel Fermentation Tanks for Stable, Efficient, and Scalable Beer Production
ZPET Commercial Beer Fermentation Tanks are designed for breweries that require large batch capacity, stable temperature and pressure control, and reliable long-term performance in demanding production environments. They are widely used in large craft breweries, regional breweries, industrial beer plants, contract brewing facilities, OEM beer production, and export-oriented brewing projects. With customizable capacities from 2000L to 50,000L, reinforced stainless steel construction, multi-zone cooling jackets, and optional automation systems, these tanks help breweries improve output, maintain beer consistency, and support long-term expansion.
Key Features of Commercial Beer Fermentation Tank
Heavy-Duty Stainless Steel Construction
Standard SUS304 stainless steel for hygienic beer fermentation
Optional SUS316 stainless steel for enhanced corrosion resistance
Reinforced tank wall structure for large-volume commercial fermentation
Designed for long service life under continuous industrial brewery operation
Suitable for lager, ale, IPA, stout, wheat beer, and specialty beer production
Large-Capacity Tank Design
Available in capacities from 2000L to 50,000L
Optimized height-to-diameter ratio to support healthy yeast performance
Designed for continuous brewing schedules and stable commercial output
Suitable for breweries targeting higher production efficiency and lower cost per liter
Supports large-scale production without compromising process stability
Advanced Cooling and Temperature Control
Equipped with multi-zone dimple jacket cooling systems
Supports precise temperature control across different fermentation stages
Compatible with centralized glycol cooling systems
Helps breweries maintain more stable fermentation conditions and consistent beer quality
Suitable for both warm and cold fermentation programs
Pressure-Rated Fermentation Design
Designed for pressure fermentation and natural carbonation
Equipped with safety valves and pressure control components
Supports modern high-efficiency brewing methods
Helps improve process control, reduce transfer steps, and strengthen production consistency
Suitable for commercial breweries with more demanding fermentation standards
Specifications
Standard Technical Specifications
| Item | Specification |
|---|---|
| Capacity Range | 2000L – 50,000L (Customizable) |
| Material | SUS304 / SUS316 Stainless Steel |
| Tank Structure | Cylindroconical |
| Cooling Zones | Multi-zone Dimple Jacket |
| Design Pressure | 0.3 MPa |
| Inner Surface Finish | ≤0.4 μm |
| Insulation | Polyurethane, 100–150 mm |
Optional Configurations and Customization
Carbonation stone for natural carbonation support
Dry hopping system for hop-forward commercial beer production
Yeast collection and management system for more efficient yeast handling
CIP cleaning system for easier sanitation and reduced downtime
Sight glass and sampling valve for process inspection and quality checking
Insulated or non-insulated design depending on project conditions
Custom nozzles, fittings, and automation interfaces for specific brewery process requirements
Key Advantages of Commercial Beer Fermentation Tanks
High Production Efficiency
Large batch volume and continuous operation help reduce production cost per liter while increasing overall brewery output and tank utilization.
Consistent Beer Quality
- Precise temperature and pressure control help ensure more repeatable fermentation results across multiple batches and product lines.
Long-Term Durability
The reinforced stainless steel structure supports reliable operation under demanding commercial brewery conditions and long production cycles.
Scalable Brewery Expansion
Commercial fermentation tanks can be added modularly, allowing breweries to increase production capacity without redesigning the full cellar system.
Better Production Stability
Pressure-rated design, multi-zone cooling, and automation compatibility help improve overall cellar control, reduce process variation, and support industrial brewing efficiency.
Commercial Beer Fermentation Process Overview
This controlled workflow helps breweries maintain high output, consistent product quality, and repeatable commercial brewing performance.cial brewing performance.
1. Wort Transfer
Cooled wort is transferred from the brewhouse into the fermentation tank.
2. Yeast Inoculation
Selected brewing yeast is added to begin fermentation.
3. Primary Fermentation
The beer ferments under controlled temperature and pressure conditions based on the beer style and production target.
4. Conditioning or Natural Carbonation
The tank can support conditioning, pressure fermentation, or natural carbonation depending on process requirements.
5. Yeast Collection and Process Monitoring
Yeast, pressure, temperature, and liquid level can be monitored and managed to support stable commercial production.
6. Transfer to BBT or Packaging
Finished beer is transferred to a bright beer tank, filtration stage, or packaging system.
Automation and Control Options
The Commercial Beer Fermentation Tank can be configured with different automation levels depending on brewery scale and standardization needs.
PLC Automatic Fermentation Control
Supports:
temperature control
pressure control
level monitoring
batch tracking
process logging
Brewery Integration
The tank can be integrated with:
brewhouse automation
glycol systems
cellar control systems
centralized brewery data systems
Production Value for Commercial Breweries
For brewery investors, operations managers, and technical teams, fermentation tanks are one of the most critical assets in the brewery. They directly affect:
annual output capacity
fermentation consistency
labor efficiency
energy consumption
product stability
expansion flexibility
This makes commercial beer fermentation tanks especially important for breweries focused on regional supply, national distribution, contract brewing, or export growth.
Manufacturing and Quality Assurance
Each ZPET commercial beer fermentation tank undergoes:
Precision welding and non-destructive testing
Pressure and leakage tests
Surface polishing and passivation
Final quality inspection before shipment
This helps ensure compliance with international brewing, beverage, and food safety standards while supporting long-term reliable operation.
FAQs - Common Questions
1. What type of brewery is this fermentation tank suitable for?
The price generally ranges from $4,000 to $6,000, depending on configuration and options.
2. What beer styles can these tanks support?
Yes, it is ideal for small-scale commercial production, especially for brewpubs and small breweries.
3. What capacity range is available?
Typically, the system can produce up to 100 liters per batch. Depending on fermentation time, you can produce 1-2 batches per day.
4. Can these tanks support pressure fermentation?
Electricity: For heating and control systems.
Water: Essential for brewing and cleaning.
Air: If using any pneumatic components.
5. Does ZPET provide turnkey support for large brewery projects?
Yes, the 100L system is perfect for pilot testing and small batch production before scaling up to larger systems.
Commercial Beer Fermentation Tank Details
Why Choose ZPET Commercial Beer Fermentation Tanks?
1. 15+ Years of Brewery Equipment Manufacturing Experience
ZPET has extensive experience in designing and manufacturing large stainless steel fermentation systems for breweries worldwide.
2. Reliable Materials and Industrial-Grade Fabrication
We use high-quality stainless steel, reinforced construction, precision workmanship, and strict testing procedures to ensure stable fermentation performance and long service life.
3. Competitive Pricing for Large-Scale Projects
We provide strong value for commercial brewery investment, helping customers balance production efficiency, quality, and capital cost.
Trusted by 200+ Breweries & Beverage Brands Worldwide
From craft pioneers to global beverage leaders, we are proud to be the engineering force behind their success.
Your Partner from Business Plan to First Brew
Founded in 2004, ZPET (Jinan Innovative & Craft Beer Equipment Co., Ltd.) has evolved into a global leader in customized brewing equipment. We don’t just manufacture tanks; we engineer success. Our team of expert brewers and engineers works closely with you to provide 3D brewery layouts, customized technical drawings, and optimized flow charts that fit your building’s unique footprint. With over 200 successful installations worldwide, we understand the nuances of international brewing standards and local regulations.
3D Layout
Footprint, workflow, utilities, safety.
Technical Drawings
Nozzles, manways, piping, controls.
Flow Charts
Process clarity from mash to packaging.
5,000㎡ Digital Manufacturing Center: Precision Engineering at Scale
Our Expert Engineering Team: The Brains Behind the Brew
With a dedicated team of over 20 senior mechanical engineers and professional brewmasters, ZPET provides more than just tanks. We offer technical consulting, 3D brewery layouts, and customized engineering solutions tailored to your specific brewing goals.
