Stacked Bright Beer Tank
Space-Saving Bright Beer Tank System for Beer Conditioning, Carbonation, and Packaging Preparation
ZPET Stacked Bright Beer Tank systems are designed for breweries that need higher production capacity without increasing floor space. They are widely used in craft breweries, commercial beer plants, lagering and cold storage operations, multi-batch maturation, and pilot brewery applications. By vertically arranging multiple bright beer tanks on a reinforced frame, this system helps breweries improve cellar efficiency, manage several beer batches at the same time, and maintain stable conditioning and carbonation performance in compact production environments.
Key Features of Stacked Bright Beer Tank
Space-Saving Stacked Design
Multiple bright beer tanks are vertically arranged on a reinforced support frame
Designed for breweries with limited floor space and high-density cellar layouts
Each tank layer has independent access for operation and maintenance
Helps increase production capacity without expanding the brewery footprint
Suitable for both growing craft breweries and commercial beer operations
Food-Grade Stainless Steel Construction
Built with SUS304 stainless steel as standard
Optional SUS316 stainless steel for acidic beer, specialty beverages, or cider applications
Polished inner surfaces help protect beer flavor and reduce contamination risk
Strong corrosion resistance supports long-term brewery use
Designed for hygienic beer conditioning and commercial beverage production
Independent Cooling and Temperature Control
Each tank is equipped with its own glycol cooling jacket
Supports individual temperature regulation for each tank layer
Helps breweries manage multiple beer styles at the same time
Optional insulation improves thermal efficiency and reduces energy loss
Suitable for beer maturation, cold storage, and flavor stabilization
Pressure-Rated and CIP-Compatible Design
Designed for natural carbonation or forced CO₂ carbonation
Typical working pressure range: 0.5–1.0 MPa
Equipped with safety relief valves for secure operation
Inner surface finish of ≤0.4 μm
Fully compatible with CIP cleaning systems for hygienic and repeatable sanitation
Specifications
Standard Technical Specifications
| Item | Specification |
|---|---|
| Capacity Range | 200L – 10,000L per tank (Customizable) |
| Material | SUS304 / SUS316 Stainless Steel |
| Tank Type | Cylindrical / Flat or Conical Bottom |
| Temperature Control | Jacketed / Glycol Cooling |
| Design Pressure | 0.5 – 1.0 MPa |
| Inner Surface Finish | ≤0.4 μm |
| Layers | 2–5 Tanks per Frame (Customizable) |
Optional Configurations and Customization
Pressure gauges and relief valves for each tank
Individual sampling ports and sight glasses for quality checking
Digital temperature and CO₂ monitoring for every layer
PLC automation for centralized monitoring and control
CIP spray balls for efficient internal cleaning
Flat-bottom or conical-bottom configurations depending on beer process needs
Custom frame layout and tank arrangement for brewery-specific space planning
Key Advantages of Stacked Bright Beer Tanks
Maximum Floor Space Utilization
The vertical tank arrangement allows breweries to expand bright beer tank capacity without using additional floor area, making it ideal for space-limited facilities.
Independent Batch Control
Each tank layer can be controlled separately for temperature, carbonation, and monitoring, allowing breweries to process multiple beer styles or batches at the same time.
Consistent Beer Quality
High-quality stainless steel construction and precise temperature management help maintain stable beer flavor, aroma, clarity, and carbonation across all tanks.
Efficient Production Flow
Stacked BBTs help streamline conditioning, carbonation, and packaging preparation while reducing equipment footprint and improving cellar workflow.
Bright Beer Tank Process Workflow
This workflow helps breweries handle multiple batches simultaneously while maintaining high efficiency in compact cellar spaces.
1. Transfer Beer from Fermenter
- Beer is transferred from the fermentation tank into the stacked bright beer tank system.
2. Sediment Settlement
- Residual yeast and trub settle at the bottom of each tank layer.
3. Carbonation Adjustment
- CO₂ is injected or maintained to achieve the desired carbonation level.
4. Temperature Stabilization
- Each tank’s glycol cooling jacket keeps beer at the optimal conditioning or storage temperature.
5. Optional Filtration
Clarification or polishing can be carried out if required before final packaging.
6. Packaging
- Beer is transferred from the stacked BBT system into kegs, bottles, or cans.
Automation and Monitoring Options
The Stacked Bright Beer Tank system can be configured with different automation levels depending on brewery scale and operational preferences.
Standard Monitoring
Supports:
temperature reading
pressure observation
manual carbonation adjustment
Digital Monitoring Per Tank
Supports:
individual temperature tracking
CO₂ monitoring
clearer process visibility for multiple layers
PLC Centralized Control
Supports:
centralized temperature and pressure management
easier operation across multiple tanks
improved consistency for larger production schedules
reduced operator workload
Manufacturing and Quality Assurance
Each ZPET stacked bright beer tank system undergoes:
Precision stainless steel welding and polishing
Pressure and leak testing
Surface passivation for stronger corrosion resistance
Final quality inspection for structural integrity and hygiene
This helps ensure long-term durability, safe operation, and compliance with international brewery equipment standards.
FAQs - Common Questions
1. What type of brewery is a stacked bright beer tank suitable for?
It is suitable for craft breweries, commercial breweries, research breweries, and pilot plants that need higher tank density in limited space.
2. Can each tank in the stacked system be controlled independently?
Yes. Each tank layer can have its own temperature, carbonation, and monitoring setup depending on the selected configuration.
3. What capacity range is available?
Each tank can be customized from 200L to 10,000L, and each frame can be configured with 2–5 tanks.
4. Can the system be used for multiple beer styles at the same time?
Yes. Independent tank control allows the stacked system to condition and prepare multiple beer styles simultaneously.
5. Does ZPET provide turnkey support?
Yes. ZPET provides tank design, frame configuration, cellar layout planning, installation guidance, and after-sales technical support.

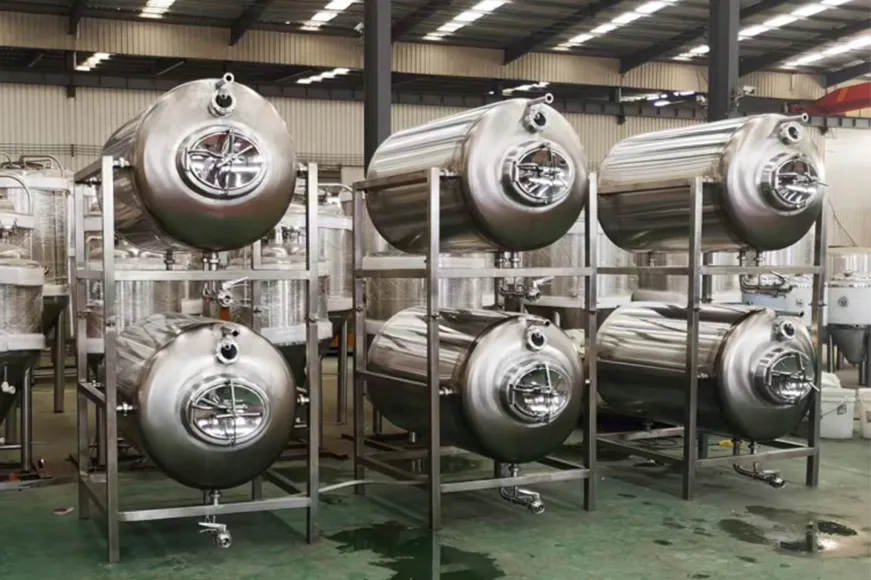

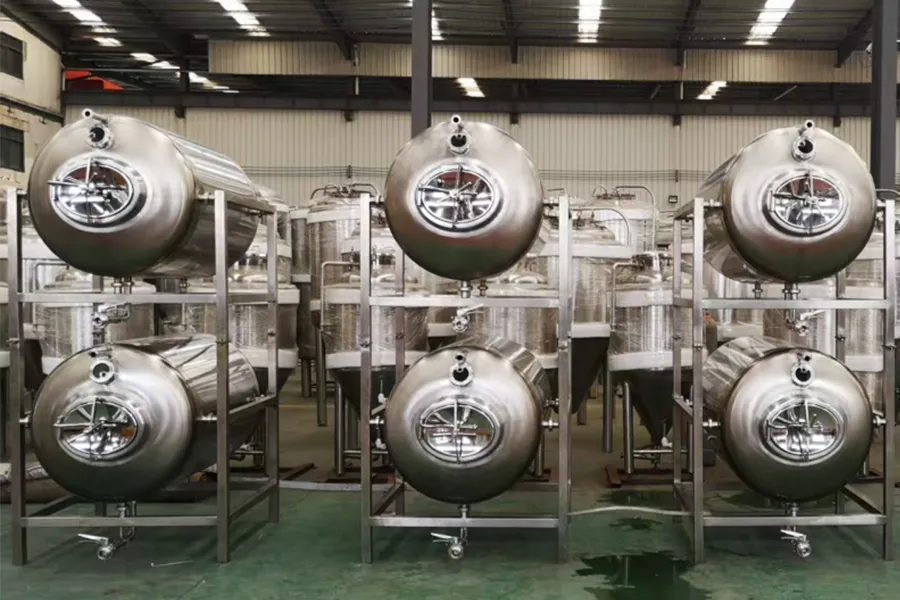

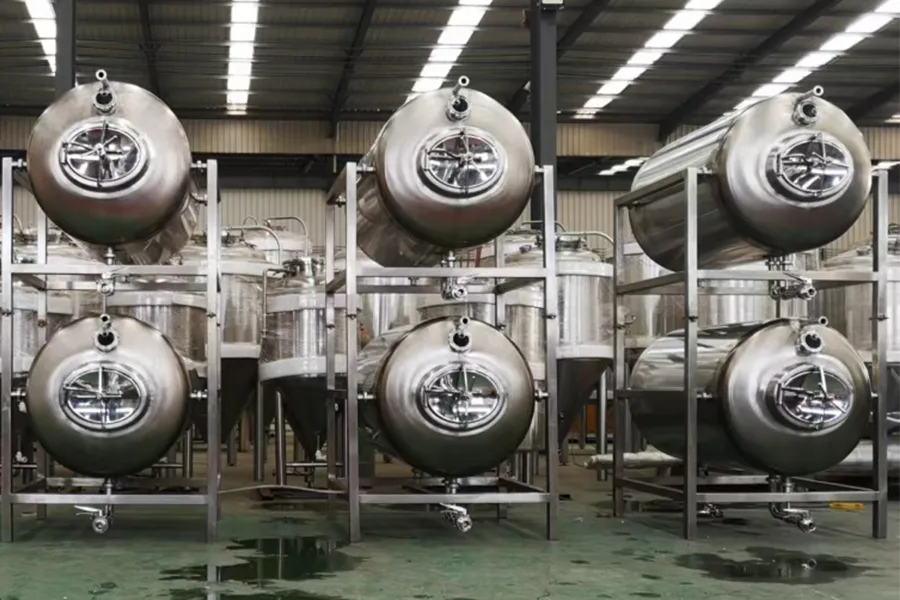

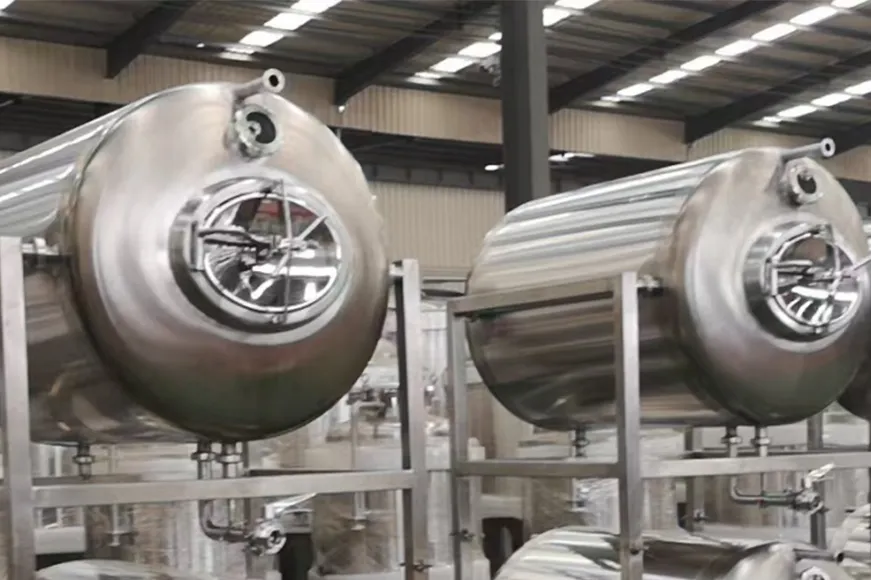

Stacked Bright Beer Tank Details
Why Choose ZPET Stacked Bright Beer Tanks?
1. 15+ Years of Brewery Equipment Manufacturing Experience
ZPET has extensive experience in designing and manufacturing stainless steel tank systems for breweries of different sizes worldwide.
2. High-Quality SUS304 / SUS316 Stainless Steel Construction
We use durable food-grade stainless steel, precision fabrication, and strict testing standards to ensure long service life and hygienic beer conditioning.
3. Reliable Temperature and Carbonation Control Systems
Our stacked BBT systems are designed to provide stable cooling, pressure control, and independent batch management for high-efficiency brewery operation.
