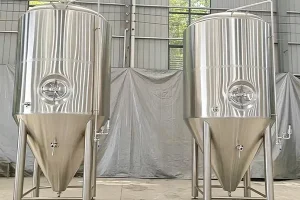

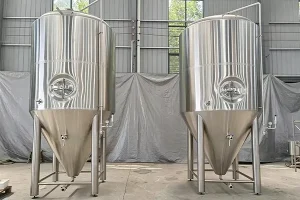

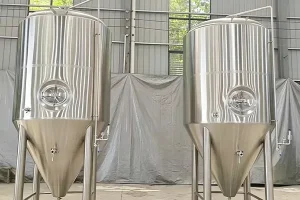

Our Germany client want to add more fermentation tank for his brewery,last year he have ordered 3000L beer fermentation tank,he plan to order more 5000L beer fermenter this time.

The beer fermenter we have designed for him with side manway,the tanks size are customized to meet his brewery building and easy for loading the container.

There are the specification for the beer fermentation tanks:

Total Capacity: 6800L.

Useful capacity: 5000L.

Outline Size: φ1900×4600mm.

Interior Shell: SUS304 Stainless Steel

Thickness: 3.0mm;

Exterior Shell: SUS304 Stainless Steel

Thickness: 2.0mm;

Insulation: Polyurethane-TH: 100mm

100% TIG welding with pure argon gas shield

Dimpled  plate Glycol Jacket on cone and side,thickness:2mm

Cooling  media: glycol water or alcohol water.

Dry  hopping port and safety valve on the top of tank

Mechanical  relief valve,Shockproof pressure gauge on CIP arm

Stringent  tank/jacket test with 3 BAR pressure(48Hours)

Rotating  racking port,discharge port with butterfly valve

Dished  head and 60 degree cone bottom

Equip  with side pressure manway

CIP arm  with 360° coverage rotatable CIP spraying ball

Temperature   sensor: PT100

All the spare parts an valve including for the stainless steel fermentation tank,pressure valve,sample valve,safety valve,pressure gauge,butterfly valve and so on.
