Top Manway Beer Fermentation Tank
Cost-Effective Stainless Steel Fermenter for Stable Beer Fermentation and Efficient Yeast Collection
ZPET Top Manway Beer Fermentation Tanks are designed for breweries that need reliable fermentation performance, hygienic tank construction, and efficient yeast management in a practical and cost-effective format. They are widely used in craft breweries, brewpubs, microbreweries, startup breweries, pilot systems, and experimental beer production lines. With a top-mounted manway, 60° conical bottom, dimple cooling jackets, and customizable capacity from 500L to 5000L, this tank is ideal for primary fermentation, secondary fermentation, and beer conditioning across a wide range of brewing applications.
Key Features of Top Manway Beer Fermentation Tank
Food-Grade Stainless Steel Construction
Made from SUS304 stainless steel as standard
Optional SUS316 stainless steel for enhanced corrosion resistance
Food-grade material compliant with international brewing standards
Smooth, durable, and hygienic surface for long-term brewery use
Suitable for ale, lager, IPA, stout, wheat beer, and specialty beer fermentation
Top Manway Design
Equipped with a round or oval top-mounted manway
Excellent sealing performance under pressure
Simpler tank body structure for easier fabrication and maintenance
Helps reduce manufacturing complexity and overall system cost
Suitable for breweries that prioritize durability, practicality, and long-term reliability
60° Conical Bottom
60° cone angle supports efficient yeast and sediment collection
Ideal for yeast harvesting and bottom discharge
Helps improve fermentation efficiency and beer clarity
Supports cleaner cellar workflow and easier solids removal
Suitable for both small-batch and commercial fermentation programs
Cooling and Temperature Control
Equipped with dimple cooling jackets or optional coil-based cooling structure
Supports precise temperature control during fermentation
Compatible with centralized glycol cooling systems
Helps breweries maintain more stable fermentation conditions
Suitable for both warm and cold fermentation processes
Specifications
Standard Specifications
| Item | Specification |
|---|---|
| Capacity | 500L – 5000L (Customizable) |
| Material | SUS304 / SUS316 Stainless Steel |
| Manway Type | Top Manway |
| Cone Angle | 60° |
| Cooling | Dimple Jacket / Coil |
| Design Pressure | 0.3 MPa |
| Inner Surface Finish | ≤0.4 μm |
| Insulation | Polyurethane, 80–120 mm |
Optional Configurations and Customization
Pressure-rated fermentation design for more advanced fermentation control
Digital temperature and pressure sensors for easier monitoring
Automatic control valves for improved process consistency
Dry hopping ports for hop-forward beer styles
Carbonation stone for carbonation-related applications
CIP spray ball system for efficient internal cleaning
Custom nozzles, fittings, and connection layouts based on brewery requirements
Key Advantages of Top Manway Beer Fermentation Tanks
High Structural Strength
Top-mounted manways reduce stress concentration on the sidewall, helping improve pressure resistance and long-term tank reliability.
Cost-Effective Solution
The simpler fabrication structure helps reduce manufacturing cost compared with side manway designs, making it a practical option for many breweries.
Excellent Hygiene
The polished inner surface and CIP-compatible design help support effective cleaning, better sanitation, and more reliable fermentation conditions.
Space-Saving Design
This design works well in breweries with limited floor space or vertical cellar layouts, making it suitable for compact production environments.
Fermentation Process Workflow
This workflow helps breweries maintain stable fermentation, efficient yeast handling, and cleaner cellar operations.
1. Wort Filling
- Cooled wort is transferred from the brewhouse into the fermentation tank.
2. Primary Fermentation
- Yeast converts fermentable sugars into alcohol and CO₂ under controlled conditions.
3. Temperature Control
- Cooling jackets regulate fermentation temperature to support stable yeast activity.
4. Yeast Collection
- Yeast and trub settle into the conical bottom for easier harvesting and discharge.
5. Maturation or Transfer
- The beer can continue conditioning in the tank or be transferred to a bright beer tank for final preparation.
Automation and Smart Monitoring Options
The Top Manway Beer Fermentation Tank can be configured with different levels of monitoring and automation depending on brewery size and process control requirements.
Basic Manual Monitoring
Suitable for pilot breweries, startup operations, and small craft production.
Digital Monitoring
Supports:
temperature tracking
pressure observation
stronger fermentation visibility
Automated Valve and Sensor Integration
Supports:
better process consistency
simplified operator control
more stable commercial brewing workflow
Manufacturing and Quality Control
Each ZPET top manway fermentation tank undergoes:
Precision welding and polishing
Pressure and leakage testing
Surface passivation for improved corrosion resistance
Final quality inspection before shipment
This helps ensure reliable performance, hygienic brewing conditions, and long-term tank durability.
FAQs - Common Questions
1. What type of brewery is this tank suitable for?
It is suitable for craft breweries, brewpubs, microbreweries, startup breweries, pilot brewing systems, and experimental beer production lines.
2. What is the advantage of a top manway design?
A top manway design offers stronger structural performance, lower manufacturing cost, and better suitability for compact vertical cellar layouts.
3. What capacity range is available?
ZPET top manway beer fermentation tanks are available from 500L to 5000L, with customization available.
4. Can the tank support dry hopping or advanced configurations?
Yes. Optional dry hopping ports, carbonation stone, automatic valves, and sensor systems can be added based on process needs.
5. Does ZPET provide turnkey support?
Yes. ZPET provides custom engineering, brewery layout support, installation guidance, and long-term after-sales technical service.

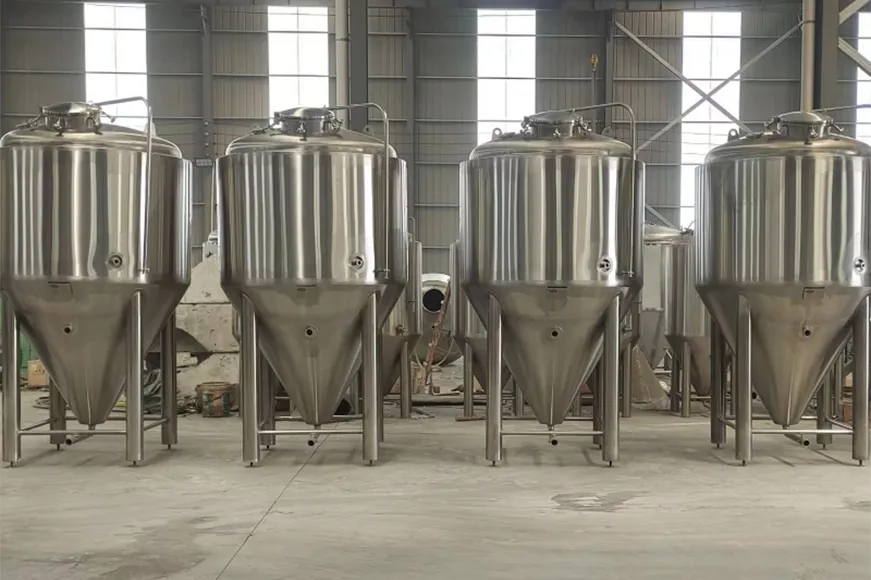

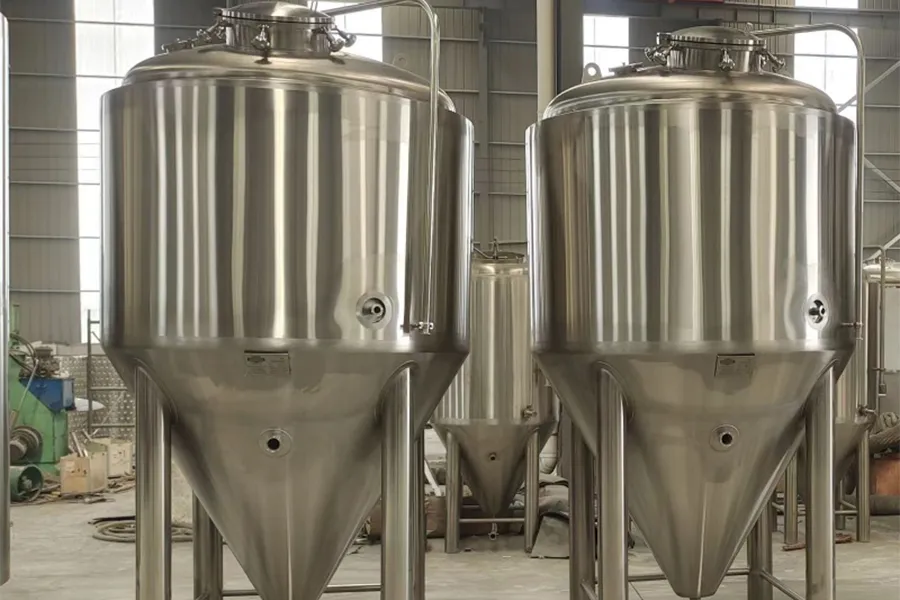

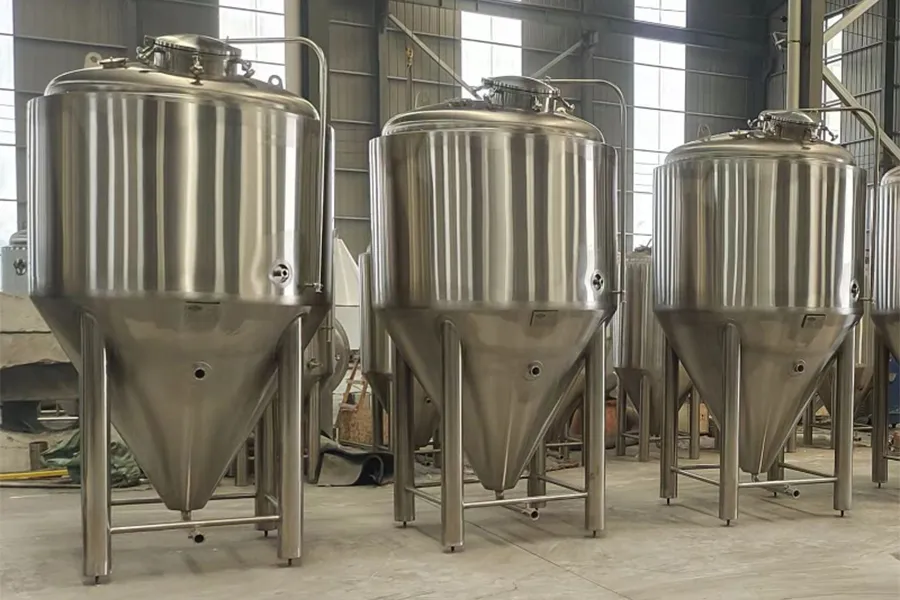

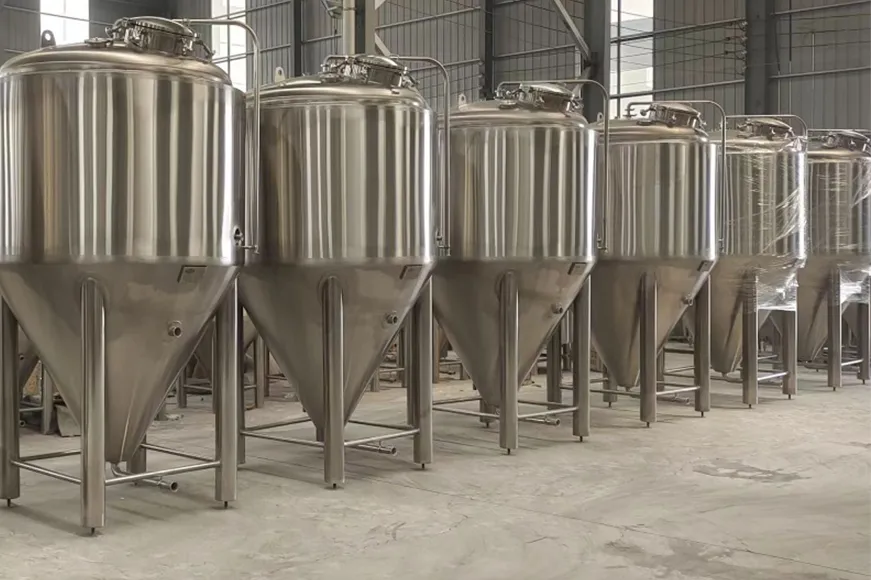

Top Manway Beer Fermentation Tank Details
Why Choose ZPET Top Manway Fermentation Tanks?
1. 15+ Years of Brewing Equipment Manufacturing Experience
ZPET has extensive experience in designing and manufacturing stainless steel fermentation tanks for breweries worldwide.
2. Precision Welding and Polishing
We use strict fabrication standards to ensure tank strength, internal hygiene, and long-term durability.
3. Custom Engineering Based on Brewery Layout
We provide tank solutions that match different brewery cellar layouts, process requirements, and production targets.
Trusted by 200+ Breweries & Beverage Brands Worldwide
From craft pioneers to global beverage leaders, we are proud to be the engineering force behind their success.
Your Partner from Business Plan to First Brew
Founded in 2004, ZPET (Jinan Innovative & Craft Beer Equipment Co., Ltd.) has evolved into a global leader in customized brewing equipment. We don’t just manufacture tanks; we engineer success. Our team of expert brewers and engineers works closely with you to provide 3D brewery layouts, customized technical drawings, and optimized flow charts that fit your building’s unique footprint. With over 200 successful installations worldwide, we understand the nuances of international brewing standards and local regulations.
3D Layout
Footprint, workflow, utilities, safety.
Technical Drawings
Nozzles, manways, piping, controls.
Flow Charts
Process clarity from mash to packaging.
5,000㎡ Digital Manufacturing Center: Precision Engineering at Scale
Our Expert Engineering Team: The Brains Behind the Brew
With a dedicated team of over 20 senior mechanical engineers and professional brewmasters, ZPET provides more than just tanks. We offer technical consulting, 3D brewery layouts, and customized engineering solutions tailored to your specific brewing goals.
