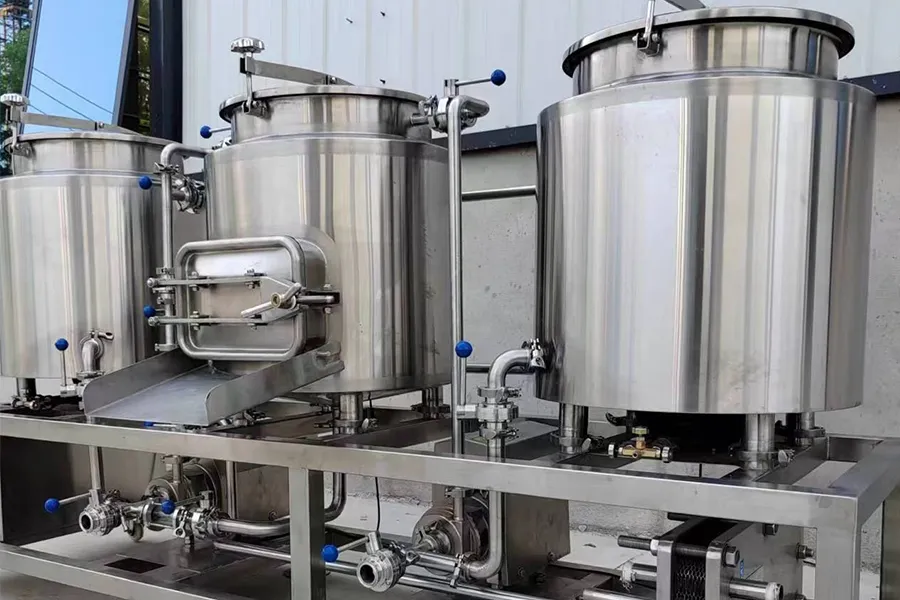

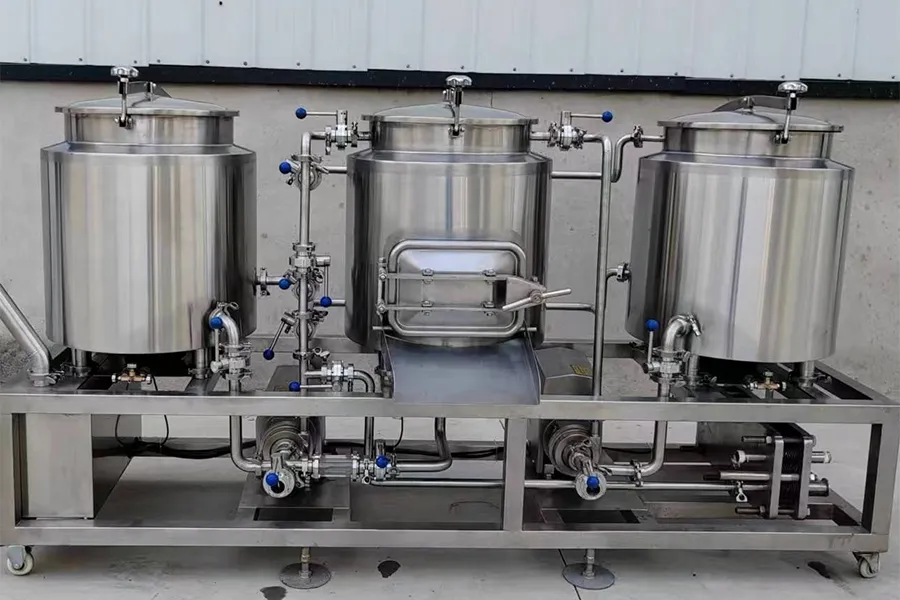

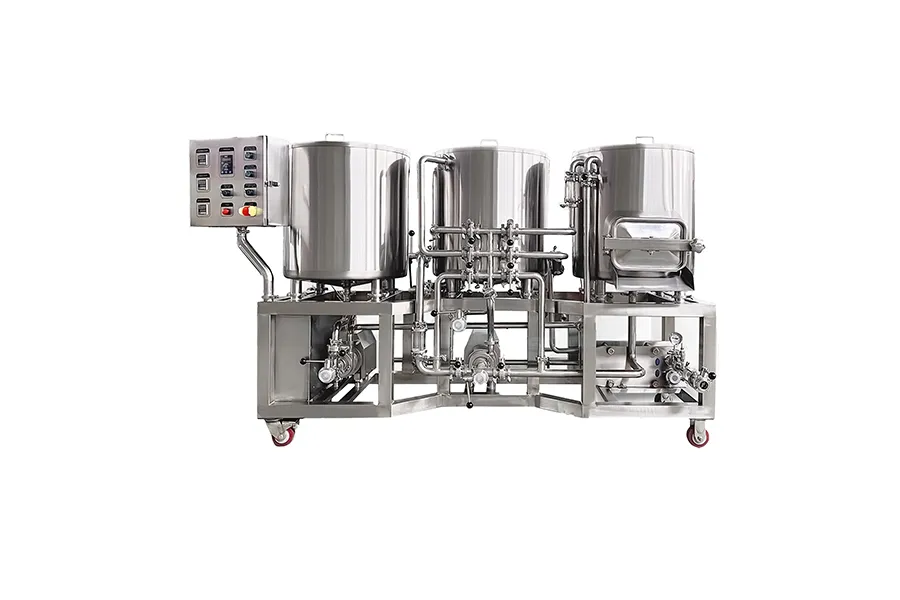

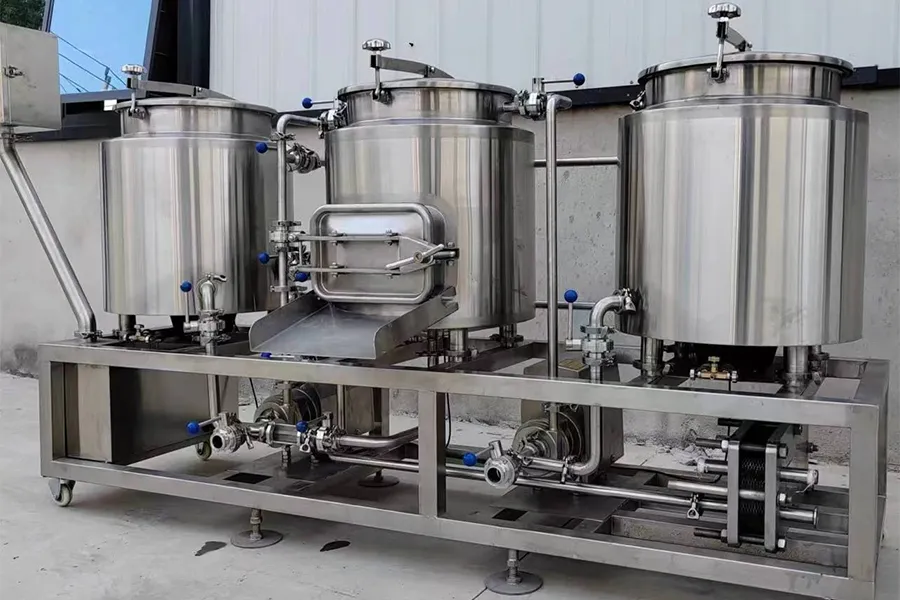

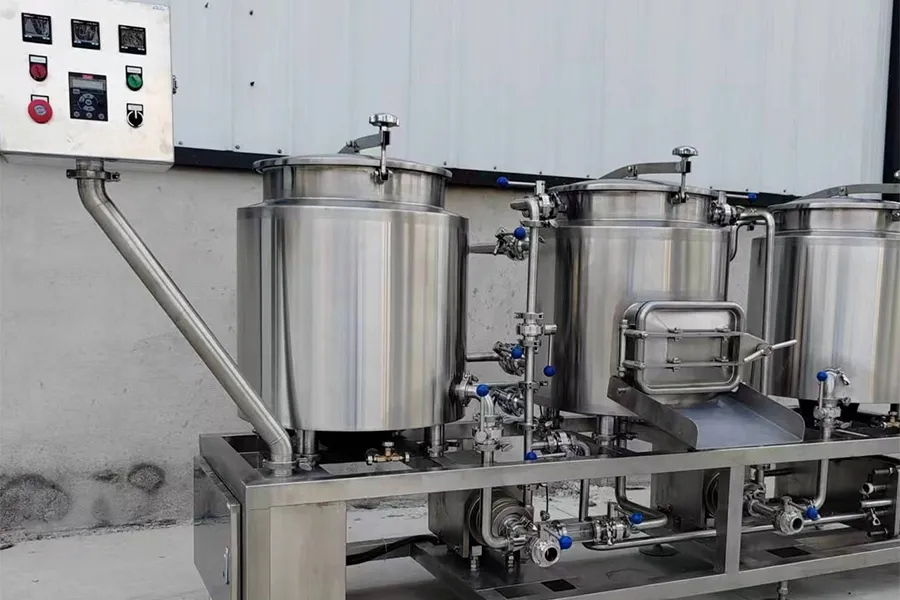

100L Brewery Equipment
Compact, Flexible, Professional Brewing System
The 100L Beer Brewing System is the ideal choice for small-scale brewers, pubs, and experimental craft beer brewing. Designed for efficiency and flexibility, this compact system offers professional-grade performance in a small footprint. Perfect for recipe development, small batches, and pilot brewing, it provides consistent beer quality and is built with food-grade stainless steel for hygiene and durability.
Main Components of the 100L Brewing System
Stable cooling and reliable cleaning are critical for any used 3HL brewery. This package combines an 800L glycol tank and 3 HP chiller with a compact CIP skid.
Brewhouse
The Brewhouse is the heart of the brewing process. For the 100L system, there are two common configurations:
Mash Tun: Where grains are mixed with water for the mashing process.
Lauter Tun: Where wort is separated from the grain.
Boil Kettle: Where the wort is boiled and hops are added for bitterness and aroma.
Whirlpool Tank (Optional): Used to separate hops and other particles from the wort before fermentation.
You can choose between a 2-vessel or 3-vessel brewhouse configuration, depending on available space and budget.
Fermentation System
Our Fermentation System includes specially designed conical fermentation tanks made from food-grade stainless steel. These tanks ensure stable yeast activity, accurate temperature control, and consistent beer quality.
Conical Fermenters: Designed to allow yeast to settle at the bottom for easier collection and transfer.
Temperature Control: Critical for maintaining optimal fermentation temperatures.
Cooling & Heat Exchange
The Cooling & Heat Exchange system includes a plate heat exchanger which helps rapidly cool the wort after boiling. This reduces the fermentation time and ensures better beer quality and fermentation efficiency.
Control System
The Control System can be customized to meet your needs:
Manual: Basic control with hands-on adjustments.
Semi-automatic: With PLC or PID control, allowing for more precise temperature, time, and process control.
Heating Method
The Heating Method for the 100L Brewing System can be chosen according to the brewer’s needs:
Electric Heating
Gas Fire Heating
Steam Heating
Power Supply
The power supply can be customized to suit the standards of different countries, ensuring compatibility and efficiency.
Main Components of the 100L Brewing System
This used 2000L fermenter is based on MICET’s standard 2HL conical fermentation tank design. It is refurbished for breweries that want reliable used 2000L fermentation tanks instead of new equipment, without sacrificing hygiene or process stability.
Proven MICET 2HL Design
Original MICET 2000L cylindroconical fermenter, now offered as a used 2000L fermentation tank with field-proven tank geometry and process fittings.
SUS304 Conical Construction
Inner shell around 3.0 mm, outer shell 2.0 mm SUS304; 60° cone for good yeast sedimentation and complete tank drainage.
Insulated & Jacketed
Approx. 80 mm PU insulation plus cylinder and cone glycol jackets keep the used 2000L fermenter at stable fermentation and conditioning temperatures.
Full CIP & Hygiene Design
Shadowless side manway, 360° rotary CIP spray ball, polished internals and sanitary fittings make the used 2000L unitank easy to clean and keep hygienic.
Refurbished & Pressure-Tested
Each used tank is inspected, pressure- and leak-tested on shell and glycol jacket, cleaned and passivated, with worn valves and gaskets replaced.
Flexible Applications
The used 2000L fermentation tank suits beer, cider, kombucha and other beverages within design pressure & temperature limits, and connects easily to existing glycol systems.
Specifications
Typical technical data for our 100L Brewery Equipment. Exact values may vary slightly with different used tank batches and refurbishment scope, and will be confirmed in your quotation.
| Item | Specification |
|---|---|
| Batch Capacity | 100 Liters |
| Brewhouse Type | 2-vessel / 3-vessel |
| Material | SUS304 / SUS316 Stainless Steel |
| Heating Method | Electric / Gas Fire / Steam Heating |
| Inner Finish | ≤0.4 μm Polishing |
| Control Mode | Manual / Semi-automatic |
| Power Supply | Customized by Country |
| Installation | Skid-mounted or Independent |
Optional Configurations and Customization
PLC Control System: For higher precision and automation.
Steam Heating Upgrade: For better heating efficiency.
Additional Fermentation Tanks: To expand production capacity.
CIP Cleaning System: Ensure a clean brewing environment.
Glycol Chiller: For better fermentation temperature control.
Custom Brewhouse Layout: Tailored to fit your space and production needs.
Advantages of 100L Beer Brewing Equipment
Customization Options
Tailor the system with a PLC control system, steam heating upgrades, additional fermentation tanks, glycol chillers, and more.
Compact Design, Professional Performance
Perfect for small spaces without sacrificing brewing quality.
Delivers professional-grade results in a compact setup.
Ideal for Recipe Development
Allows brewers to test new beer styles and refine recipes.
Enables experimentation with different beer styles at a low raw material cost.
Easy Operation & Maintenance
Intuitive controls and simple piping design make operation straightforward.
Low operational complexity for easier maintenance and cleaning.
Low Investment, High Flexibility
Affordable compared to larger systems.
Offers flexibility for future upgrades without significant investments.
FAQs - Common Questions
1. What is the cost of a 100L Brewing System?
The price generally ranges from $4,000 to $6,000, depending on configuration and options.
2. Can the 100L system produce commercial beer?
Yes, it is ideal for small-scale commercial production, especially for brewpubs and small breweries.
3. How much beer can I brew per day?
Typically, the system can produce up to 100 liters per batch. Depending on fermentation time, you can produce 1-2 batches per day.
4. What utilities are needed for the 100L system?
Electricity: For heating and control systems.
Water: Essential for brewing and cleaning.
Air: If using any pneumatic components.
5. Can this system be used as a pilot system for larger breweries?
Yes, the 100L system is perfect for pilot testing and small batch production before scaling up to larger systems.
100L Brewery Equipment Details
Why Choose Our 100L Brewing Equipment?
As an experienced brewery equipment manufacturer, we ensure the highest standards of quality at every stage, from material selection to final testing. With over 15 years of experience, we have supplied equipment to over 200 breweries worldwide. Our team offers reliable equipment, professional technical support, and complete after-sales service.
Future Expansion and Scalability
The 100L Brewing System is designed for scalability, allowing you to easily upgrade to a larger system without compromising the brewing process or requiring extensive retraining.
Trusted by 200+ Breweries & Beverage Brands Worldwide
From craft pioneers to global beverage leaders, we are proud to be the engineering force behind their success.
Your Partner from Business Plan to First Brew
Founded in 2004, ZPET (Jinan Innovative & Craft Beer Equipment Co., Ltd.) has evolved into a global leader in customized brewing equipment. We don’t just manufacture tanks; we engineer success. Our team of expert brewers and engineers works closely with you to provide 3D brewery layouts, customized technical drawings, and optimized flow charts that fit your building’s unique footprint. With over 200 successful installations worldwide, we understand the nuances of international brewing standards and local regulations.
3D Layout
Footprint, workflow, utilities, safety.
Technical Drawings
Nozzles, manways, piping, controls.
Flow Charts
Process clarity from mash to packaging.
5,000㎡ Digital Manufacturing Center: Precision Engineering at Scale
Our Expert Engineering Team: The Brains Behind the Brew
With a dedicated team of over 20 senior mechanical engineers and professional brewmasters, ZPET provides more than just tanks. We offer technical consulting, 3D brewery layouts, and customized engineering solutions tailored to your specific brewing goals.
