Kombucha Fermentation Tank
Stainless Steel Fermentation Tanks for Stable SCOBY Activity and Scalable Kombucha Production
ZPET Kombucha Fermentation Tanks are designed for producers who need stable microbial fermentation, hygienic processing conditions, and flexible capacity for both craft and commercial kombucha production. They are widely used in craft kombucha brewing operations, commercial probiotic beverage production, functional tea processing plants, low-alcohol fermented beverage lines, and R&D fermentation systems. With customizable capacities from 200L to 30,000L, acid-resistant stainless steel construction, optional open or closed tank design, and optional cooling systems, these tanks help producers maintain balanced acidity, consistent flavor, and repeatable kombucha quality.
Key Features of Kombucha Fermentation Tank
Acid-Resistant Stainless Steel Construction
Standard SUS304 stainless steel for hygienic kombucha production
Optional SUS316 stainless steel for enhanced acid resistance
Non-reactive inner surface helps protect tea flavor, acidity balance, and probiotic stability
Suitable for plain kombucha, flavored kombucha, hard kombucha base, and functional fermented tea production
Designed for long-term use in both small-batch and large-scale beverage manufacturing
Open or Closed Fermentation Design
Open-top tanks for traditional aerobic kombucha fermentation
Closed tanks for more controlled fermentation environments
Optional breathable covers or air valves to support healthy SCOBY activity
Flexible design supports different kombucha processing preferences and production methods
Suitable for both artisanal fermentation and more standardized commercial production
Temperature Control System
Optional cooling jackets help maintain stable fermentation temperature
Helps prevent overheating, over-acidification, and flavor imbalance
Supports more stable SCOBY development and probiotic performance
Useful for both short fermentation cycles and longer controlled processing programs
Helps improve flavor repeatability across multiple batches
Hygienic and Sanitary Design
Inner surface finish of ≤0.4 μm
Smooth welds with no dead corners
Fully CIP-compatible for easier and more repeatable cleaning
Helps reduce contamination risk and improve food-grade production safety
Suitable for beverage manufacturers that require higher sanitation consistency
Specifications
Standard Technical Specifications
| Item | Specification |
|---|---|
| Capacity Range | 200L – 30,000L (Customizable) |
| Material | SUS304 / SUS316 Stainless Steel |
| Tank Type | Open / Closed |
| Cooling Option | Optional Cooling Jacket |
| Design Pressure | Atmospheric |
| Inner Surface Finish | ≤0.4 μm |
| Insulation | Optional |
Optional Configurations and Customization
Breathable fermentation covers for aerobic kombucha processing
Sampling valves and pH ports for easier process observation and quality control
Cooling jackets and temperature sensors for better fermentation stability
Mixing systems for flavor infusion and specialty kombucha processing
PLC monitoring and batch tracking for commercial production management
Custom nozzles, fittings, and tank dimensions for different factory layouts
Key Advantages of Kombucha Fermentation Tanks
Stable SCOBY Fermentation
The tank design supports healthy SCOBY growth and balanced microbial activity, helping producers maintain more stable fermentation performance.
Flavor Consistency
Controlled fermentation conditions help prevent excessive acidity, flavor imbalance, and unwanted fermentation variation from batch to batch.
Food Safety and Hygiene
Stainless steel construction and CIP compatibility help meet food and beverage hygiene standards while reducing contamination risk.
Scalable Production
Available from 200L to 30,000L, these tanks are suitable for both small craft fermentation and high-volume commercial kombucha production.
Flexible Product Development
The system supports plain kombucha, flavored kombucha, hard kombucha base, and functional fermented tea, allowing producers to diversify their product portfolio.
Kombucha Fermentation Process Overview
This process helps producers achieve balanced acidity, probiotic stability, and repeatable beverage quality.
1. Sweet Tea Filling
Prepared tea and sugar solution are transferred into the fermentation tank.
2. SCOBY Introduction
SCOBY and starter liquid are added to begin fermentation.
3. Primary Fermentation
Controlled fermentation takes place under aerobic or semi-controlled conditions depending on the production method.
4. Monitoring
Key variables such as pH, temperature, and time are monitored to guide fermentation stability and flavor balance.
5. Secondary Fermentation
Key variables such as pH, temperature, and time are monitored to guide fermentation stability and flavor balance.
6. Transfer and Packaging
The finished kombucha is transferred for bottling, canning, or further conditioning.
Optional Automation and Smart Monitoring
The Kombucha Fermentation Tank can be configured with different levels of monitoring and control depending on production scale and standardization goals.
Basic Manual Monitoring
Suitable for smaller craft kombucha operations and pilot production.
Digital Monitoring
Supports:
temperature tracking
pH observation
improved process supervision
PLC Monitoring and Batch Tracking
Supports:
batch record management
more consistent fermentation control
easier scaling for commercial production
stronger repeatability across multiple flavor lines
Manufacturing and Quality Control
Manufacturing and Quality Control
Each ZPET kombucha fermentation tank undergoes:
Precision welding and surface polishing
Leak testing and structural inspection
Passivation for corrosion resistance
Final quality control before shipment
This helps ensure durability, hygienic performance, and compliance with food-grade beverage production standards.
FAQs - Common Questions
1. What products can be made in a kombucha fermentation tank?
These tanks are suitable for plain kombucha, flavored kombucha, hard kombucha base, low-alcohol fermented beverages, and functional fermented teas.
2. Why is stainless steel recommended for kombucha fermentation?
Stainless steel is hygienic, easy to clean, non-reactive, and more suitable for repeatable commercial fermentation than many traditional materials.
3. Can these tanks be used for traditional open fermentation?
Yes. Open-top configurations are available for traditional aerobic SCOBY fermentation, and closed options are also available for more controlled production environments.
4. What capacity range is available?
ZPET kombucha fermentation tanks are available from 200L to 30,000L, with customization available for different project sizes.
5. Does ZPET provide technical support and customization?
Yes. ZPET provides custom tank design, process planning support, layout suggestions, and after-sales technical service for craft and commercial kombucha projects.

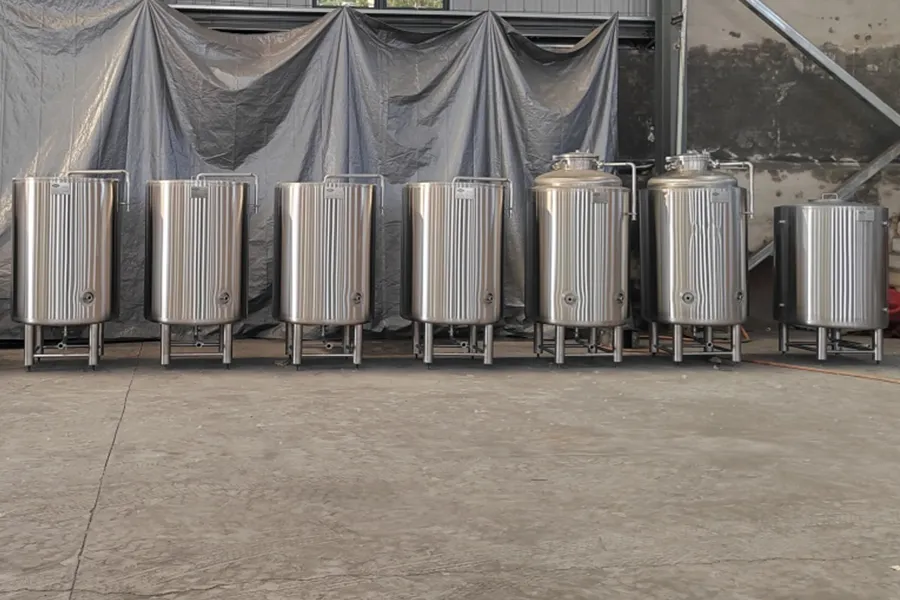

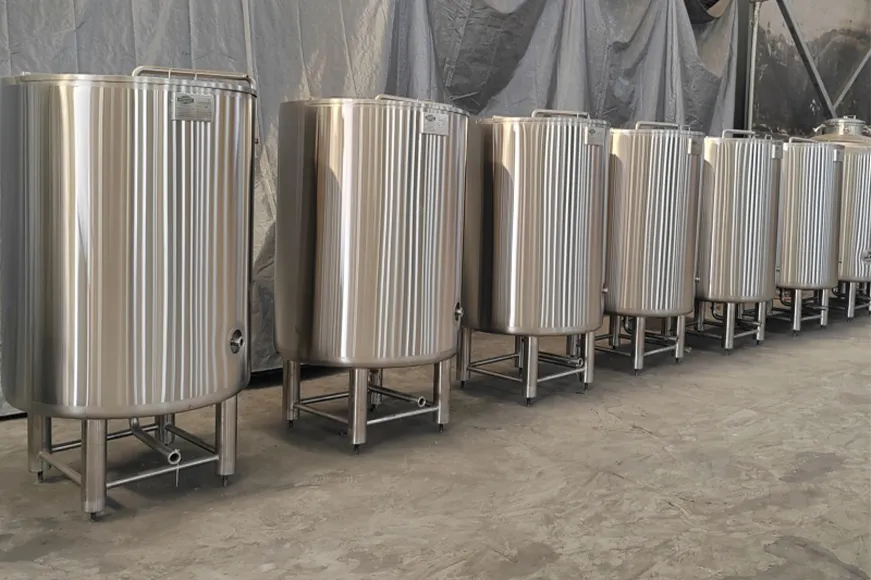

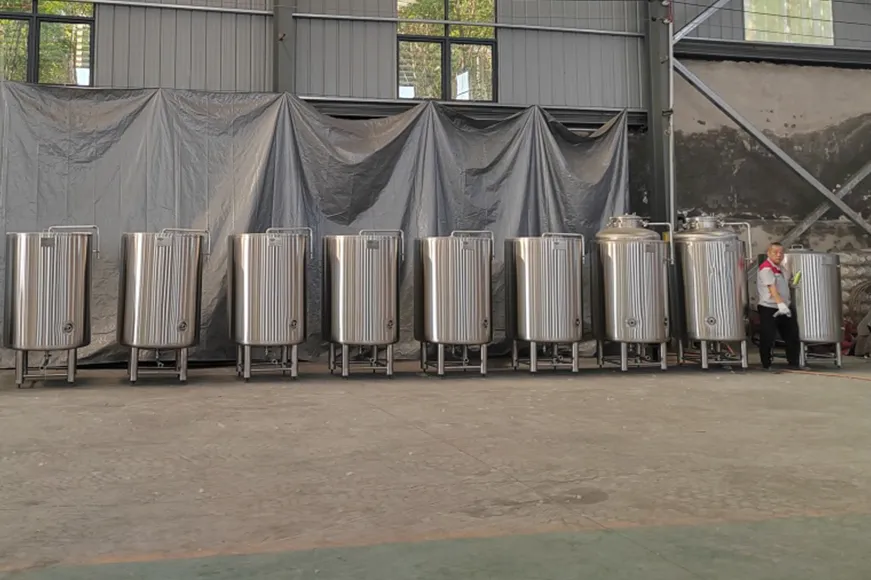

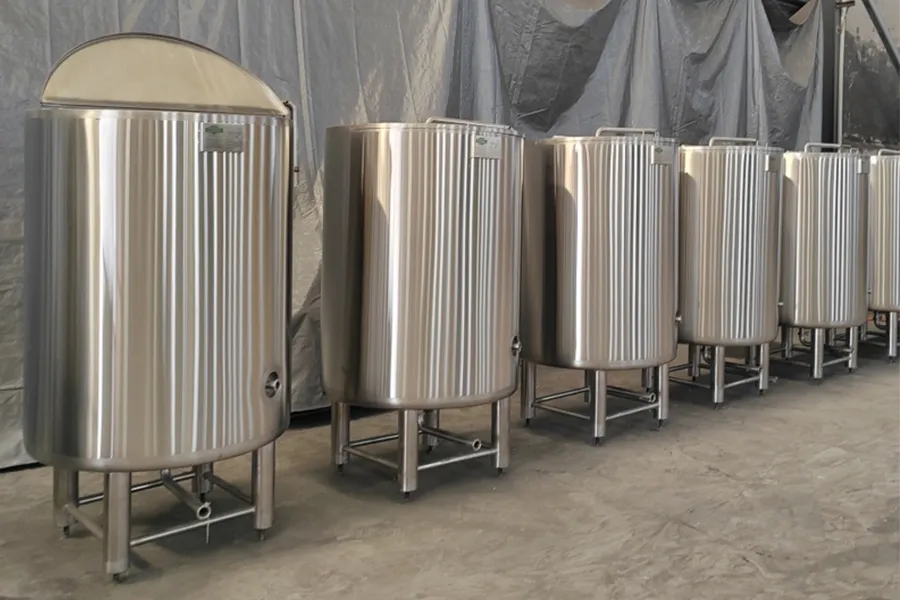

Kombucha Fermentation Tank Details
